RFD4-Proteina on GitHub (RosettaCommons/RFD4-Proteina)

RFD4-Proteina README

The project's README from github.com/RosettaCommons/RFD4-Proteina. As one markdown file: README.md.

RFD4-Proteina

A flow-matching foundation model for biomolecular design — Baker Lab × NVIDIA GenAIR

Project page · Paper · Try it now · Requirements · Installation · Quick start · Workflows · Tutorials · Citation · Documentation

Nanobody complex, protein–DNA binder, RNA pseudoknot, ligand pocket, glycan complex, and protein assembly.

Try it now

No install needed: design in your browser with the Hugging Face Studio Spaces.

RFD4-Proteina Studio (ZeroGPU): runs on your own ZeroGPU quota.
RFD4-Proteina Studio (dedicated GPUs): a shared dedicated GPU pool.

Both require a Hugging Face sign-in, and both screen designs with SecureDNA.

RFD4-Proteina designs proteins and biomolecular complexes with sequence–structure co-design, motif and binding-site conditioning, partial diffusion, and reward-guided search.

Key features:

Many design tasks from one model: monomers, protein and DNA binders, antibodies and nanobodies, enzymes and motif scaffolding, small-molecule pockets.
Rich conditioning: annotated CIF inputs or text-based YAML specifications (the quickest way to start) for fixed motifs, hotspots, burial, hydrogen bonds, and more.
Reward-guided search: beam search over generation paths scored by structure-prediction oracles and custom metrics.
Partial diffusion to refine or diversify existing structures.
Fast inference: torch.compile by default, with an optional BioIR backend (inference_backend=bioir).
Hugging Face release and Python API alongside the rfd4-generate, rfd4-evaluate and training CLIs.

System requirements

Linux x86_64, Python 3.12, and an NVIDIA GPU with a CUDA 13-compatible driver (CUDA 12 and CPU-only containers are also available).
Tested GPUs: see the supported hardware table. Check yours with nvidia-smi.
macOS and Windows are not supported.

Install

Start with make setup. On a machine that meets the requirements above:

git clone https://github.com/RosettaCommons/RFD4-Proteina.git
cd RFD4-Proteina
make setup
source .venv/bin/activate

The repository history is large because of past notebook outputs. For a fast clone use git clone --depth 1 (no history) or git clone --filter=blob:none (full history, blobs fetched on demand). Notebooks are committed without outputs; run pre-commit install to enforce this with nbstripout.

Setup installs the environment, caches the released Hugging Face model bundle (about 1.7 GB, including its autoencoder), and configures DATA_PATH for optional data. The cache location follows HF_HOME. See the installation guide for CUDA build prerequisites, optional metrics, and cluster setup.

Setup also asks whether to add an AlphaFold 2 or AlphaFold 3 / OpenFold3 environment for reward-guided search and refolding metrics (and, if so, your CPU architecture and CUDA version). Skip that with bash setup.sh --skip-search-envs; run it later with bash scripts/setup_search_envs.sh.

Other options (CUDA 12, CPU-only, Docker, Apptainer, pip) are listed in the deployment options. For example, a container with CUDA 13 (use RFD4_ACCELERATOR=cu12 or cpu for the others):

docker build -t rfd4-proteina:cu13 .
docker run --rm --gpus all rfd4-proteina:cu13 rfd4-generate --help

If access to the Hugging Face repositories is restricted, supply HF_TOKEN or use hf auth login with an account that has access. For interactive login on a fresh checkout, run bash setup.sh --skip-weights, activate .venv, log in, then run bash setup.sh --native. Public repositories need no authentication.

Quick start with pip

On Linux x86_64 with Python 3.12, an NVIDIA GPU and a CUDA 13-compatible driver. Older pip releases still trust the compromised eMudhra/emSign CA (October 2026), so the first command installs pip 26.2.2 from a hash-pinned URL before uv is downloaded:

pip install "pip @ https://files.pythonhosted.org/packages/3f/06/3e4420302363fbb71be3c7f35ce042f54bfca330e3e66b3a2e3c4cca579f/pip-26.2.2-py3-none-any.whl#sha256=fd7f4dfa8190e014013b9f08f3e973f4e4c26ffd179a204895533a7254813a70"
pip install "uv>=0.13.4"            # or: curl -LsSf https://astral.sh/uv/install.sh | sh
uv venv --python 3.12 && source .venv/bin/activate
uv pip install "rfd4-proteina[all-cuda13]"   # CUDA 12: all-cuda12; the base package alone is "rfd4-proteina"

# a binder to PD-L1: download the target, describe the design in YAML, generate
curl -LO https://raw.githubusercontent.com/RosettaCommons/RFD4-Proteina/main/docs/examples/inputs/5o45_cropped.cif.zst
cat > binder.yaml <<'EOF'
binder:
  input: 5o45_cropped.cif.zst
  contig: "50-120, /0, A17-131"
  conditions: {C_CRDGRP: {1: [{select: "sel('A/*/*/[N,CA,C,O]')"}]},
               C_SEQ: {true: [{select: "sel('A')"}]}}
EOF
rfd4-generate inference_experiment=quickstart inputs=binder.yaml out_dir=./runs/first

The quickstart preset skips scoring and the torch.compile warm-up so a first run finishes quickly; drop it for larger runs.

The environment is about 7 GB, mostly PyTorch and the CUDA libraries. uv downloads in parallel and caches wheels, so it installs in about two minutes on a fresh cluster node where plain pip takes about ten; pip install works too, only more slowly.

The model can also be run as a Hugging Face Diffusers pipeline. The quickstart covers all three routes in order: GitHub clone, PyPI and Diffusers.

The CUDA extra also installs the fused cuEquivariance kernels the model loads, so use it even if you skip metrics. Add inference_backend=bioir to use the BioIR runtime (included in all-cuda13). all-cuda12 and the plain package use the native runtime. If pip cannot see a very recent release, retry with --no-cache-dir.

Run the model

After setup, describe a design in a small YAML condition spec. This one asks for a 50-120 residue binder to PD-L1, using an input included in the repository. Save it as binder.yaml in the repository root:

binder:
  input: docs/examples/inputs/5o45_cropped.cif.zst
  contig: "50-120, /0, A17-131"
  conditions: {C_CRDGRP: {1: [{select: "sel('A/*/*/[N,CA,C,O]')"}]},
               C_SEQ: {true: [{select: "sel('A')"}]}}

and run it:

rfd4-generate inputs=binder.yaml num_replicates=2 out_dir=./runs/first '~metrics'

JSON with the same keys works too. Designs are written to runs/first/inference_samples/. '~metrics' skips scoring, so no refolding environment is needed (quote it so zsh keeps the ~). Add compile_lengths=null to a first smoke test to skip the torch.compile warm-up. Next: design a binder in 10 lines, the cookbook with a recipe per task (monomers, binders, enzymes, nanobodies, small molecules, partial diffusion), or your own annotated input.

Hugging Face and Python

To load the model from the Hugging Face Hub, with no local checkpoints and no DATA_PATH, pass hf_ckpt_path; use a different Hub repo or a local exported bundle the same way:

rfd4-generate hf_ckpt_path=nvidia/RFD4-Proteina \
    inference_experiment=quickstart inputs=design.yaml out_dir=./runs/hf

Install it with uv pip install rfd4-proteina on a supported CUDA/Python system. The same API works from an installed development checkout:

import rfd4_proteina as rfd4

model = rfd4.Proteina.from_pretrained("nvidia/RFD4-Proteina")
rfd4.generate(model, overrides=["inference_experiment=quickstart", "inputs=design.yaml", "out_dir=runs/hf"])

Use an annotated CIF or condition-spec YAML as inputs. Add revision="<commit>" to from_pretrained (or hf_ckpt_revision=<commit> to the CLI) for reproducibility. HF caches downloaded weights; rfd4.generate reuses the loaded model. For a native local checkpoint, set hf_ckpt_path=null, ckpt_path=/path/to/checkpoints, ckpt_name=model.ckpt, and autoencoder_ckpt_path=/path/to/ae.ckpt. Training datasets are separate from model downloads: see the training guide.

Running the model: binders, motif scaffolding, partial diffusion, and sampling settings.
Input preparation · Text-based design specifications
Scoring and refolding · Reward-guided search
Training and fine-tuning · Worked examples

More workflows

Binders and motif scaffolding: condition on an annotated CIF or a YAML design spec; see Running the model.
Reward-guided search: select a search inference_experiment config to branch and prune candidates against an oracle; see Reward-guided search.
Partial diffusion: re-noise and refine an existing design; see Partial diffusion.
Scoring and refolding: run rfd4-evaluate on generated structures; see Scoring and refolding.
Inference backends: native (default, compiled or eager) or bioir via inference_backend=; see Inference backends.

Tutorials

Python API tutorial: build and validate conditioned structure inputs.
Enzyme design tutorial: motif scaffolding and catalytic-site metrics, end to end.
PPI specificity tutorial: protein-binder design and specificity checks.
Antibody campaign examples: cropped PMVK/MZB1 VHH inputs, hotspot sampling, high-early recycling, and partial refinement.
Agent skills: task-specific guides for setup, generation, search, and evaluation.

Citation

If you use RFD4-Proteina in your research, please cite Biomolecular design through latent reasoning with RFD4-Proteina:

@article{corley2026rfd4proteina,
  title        = {Biomolecular design through latent reasoning with {RFD4-Proteina}},
  author       = {Corley, Nathaniel and Didi, Kieran and Kazman, Maxwell W. and Brent, Rafael I. and others},
  year         = {2026},
  note         = {Preprint},
  url          = {https://rfd4-proteina.org/assets/paper/RFD4-Proteina.pdf}
}

See the project page for citation updates.

Documentation · Contributing · BSD 3-Clause license

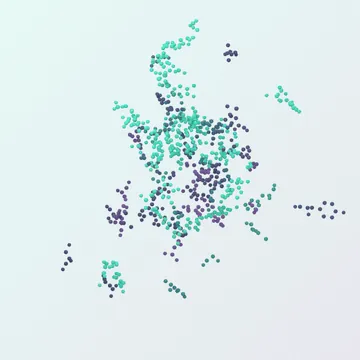

Protein-binder generation conditioned on a DNA duplex.
