framefields — code-first video, rendered natively on WebGPU

Compositing, motion graphics and 3D for code-first video — one npm package that AI agents drive with code.

npm license status discord youtube node engine gpu vision

⚠️ Beta: framefields is under active development. APIs may change between releases and some features may be incomplete or unstable.

Framefields is built for coding agents. It packs the work people usually split across three desktop apps (Photoshop-inspired compositing and VFX, After Effects-style motion, typography and keyframing, and Blender-style 3D scenes, cameras and models) into one lightweight npm package. Your agent writes a TypeScript composition, checks frames, and renders an MP4, and nobody has to install or license a multi-gigabyte creative suite.

Code-first video as pure software engineering — no headless browser, no DOM reflow, no screenshot pipeline. Renders directly on GPU hardware via Dawn / WebGPU / Metal / Vulkan in Node.js and modern WebGPU browsers.

Made with framefields

Every frame of these films is rendered by framefields from TypeScript in examples/. Click a still to watch it on YouTube.

Framefields launch film
Framefields launch
22_framefields_launch 		Full Circle film
Full Circle
21_full_circle 		Dancer showcase film
Dancer showcase
19_framefields_film

[!NOTE] Using an AI coding agent? Install the framefields skills in one line.

Note: Framefields plugin review in claude takes a bit long... Please use the alternative skills installation for now.

Claude Code

/plugin install framefields

Any other agent (Codex, Cursor, Hermes, Gemini CLI, Copilot, and more)

npx skills add gatewai-dev/framefields

See Agent Skills & Plugins for details.

Table of Contents

Why Framefields

Modern automated video generation is usually constrained by the architectures of general-purpose web browsers: process overhead, non-deterministic DOM layout reflows, and slow screenshot capture. Framefields treats video composition as software engineering:

Pillar What it means
🚀 Zero Headless-Browser Overhead No Puppeteer, no Chromium IPC, no page.screenshot(). Framefields talks straight to native GPU devices via Dawn/WebGPU and hardware-encodes with @napi-rs/webcodecs.
🎯 Deterministic Frame-Accurate Clock Absolute frame clocks, discrete sample points, and frame-accurate audio BeatGrids. No floating timers, no drift, no dropped frames.
🔠 Analytic, Resolution-Independent Type The Slug algorithm evaluates glyph contours per-pixel in WGSL — no texture atlases, no scaling artifacts, razor-sharp from 10 px to 10,000 px.
🎨 Photoshop-Inspired Tonal & Spatial VFX 50+ modular GPU shaders: Curves, Levels, Selective Color, 3D LUTs, Halftone, Film Grain, Unsharp Mask, Mesh Warp, and Screen-Space Relighting.
🧊 Unified 3D & 2D Depth Compositing Nest 2D flex/box trees inside 3D homography planes, multiplane rigs, and meshes (OBJ, FBX, glTF/GLB, STL, PLY, VOX, 3DS, OFF), with PBR glass and SSAO.
🔊 Built-in Procedural Audio DSP Multi-track soundtracks, deterministic procedural transition SFX (whoosh, impact, riser), and reactive signals that drive visuals from audio.
👁️ On-Device Neural Vision Object tracking, instance segmentation, multi-person pose, and person mattes from Apache-2.0 ONNX models — feeding reactive signals without a round trip to disk.
☁️ Cloud-Native & CI/CD Ready ~200–400 MB RAM per worker (vs. 2–4 GB for Chromium), ideal for serverless GPU render clusters (AWS G4/G5, Modal, RunPod, Kubernetes).

Key Features & Capabilities

1. Slug GPU Vector Typography & After Effects Animators

Traditional text relies on CPU rasterization or low-res SDF atlases that soften under 3D camera sweeps. Framefields integrates the Slug algorithm (SlugPipeline):

2. Photoshop-Inspired WebGPU 2D VFX (50+ Shaders)

A comprehensive suite of professional image/video shader nodes in nodes/ and packages/webgpu-renderers:

3. Unified 3D Scene Graph, Camera & Mesh Shading

4. Audio Layers, Procedural SFX & Reactive Signals

5. Animated Charts

Layer.chart builds line, area, bar (grouped or stacked), scatter, candlestick, pie and donut charts. d3 computes the scales, ticks and geometry; every bar, line, slice and label is an ordinary box, path or text node:

Layer.chart(
  {
    type: "bar",
    width: 900,
    height: 480,
    categories: ["Q1", "Q2", "Q3", "Q4"],
    series: [
      { name: "Revenue", data: [12, 19, 24, 31] },
      { name: "Costs", data: [8, 11, 13, 15] },
    ],
    yAxis: { format: "$,.0f" },
    animate: { start: 10, duration: 30 },
  },
  { position: "absolute", x: 120, y: 200 },
);

6. On-Device Vision & Tracking

@framefields/vision runs ONNX models via onnxruntime-node (CPU) or onnxruntime-web (WebGPU) and wires every result into the same reactive signal surface the rest of Framefields consumes.

[!TIP] Lazy by construction. VisionRunner.create(), comp.withVision(...) and VisionNode.attach(...) perform zero I/O — no downloads, no sessions, no file probes. A model is fetched the first time a task actually runs. To warm up ahead of time, call await runner.preload(["detect", "pose"]) (or await vision.ready() on an attached node).

Tasks and models

Every model is Apache-2.0, pinned to an immutable Hugging Face revision, and verified by SHA-256 after download.

Task Option Model Output
Detect enableDetection RTMDet-Ins t/s/m (OpenMMLab) COCO-80 boxes + scores, tracked over time
Segment enableSegmentation RTMDet-Ins (same forward pass as detect) Soft per-instance masks, frame-aligned
Pose enablePose RTMO t/s/m (OpenMMLab) 17 COCO keypoints + visibility per person
Matte enableMatte MediaPipe Selfie Segmenter (Google) Fast person-vs-background alpha for portrait / webcam framing

GPU helpers

Temporal tracking & analysis

Reactive vision signals

Every tracked entity is exposed as reactive ProgrammaticSignals that animate layers and shader uniforms:

Group Highlights
objects get(trackId), byCategory(cat, rank), primary, count, hasCategory, detectedCategories
objects.*.bounds x/y/width/height, screenX/screenY/screenWidth/screenHeight, aspectRatio, area
objects.*.anchors 9 anchors (corners, edges, center) ready for pinning
objects.*.kinematics vx, vy, speed, acceleration, headingRad/Deg
objects.*.pose All 17 COCO keypoints, plus hasPose, wristSpeed, handRaised, bodyTiltAngle
masks get(trackId), subject, count; per-mask area, coverage, solidity, bboxFill
segmentation subject, humanSilhouette, instanceMasks, matte.coverage, GPU stencilTexture
classes Per-class count, maxConfidence, present, primary, plus a detection histogram
Tensors poseLandmarksTensor [17,3], objectsTensor [16,8], masksTensor [16,2], histogramTensor [80]

Spatial pinning

Project normalized landmarks to screen space with a configurable camera FOV, then bind any node to a track or landmark (SpatialLandmarkTransformer, spatial-pin):

High-level composition helpers

Agent-first DX

7. Headless Conformance & FrameGrid Testing

8. Live Preview in the Browser

import { startPreview } from "framefields";

const session = await startPreview(
  { entry: new URL("./film.ts", import.meta.url), export: "buildFilm" },
  { title: "framefields film" },
);
console.log(`Preview at ${session.url}`);
await session.closed; // serves until its tab closes or a newer preview takes over

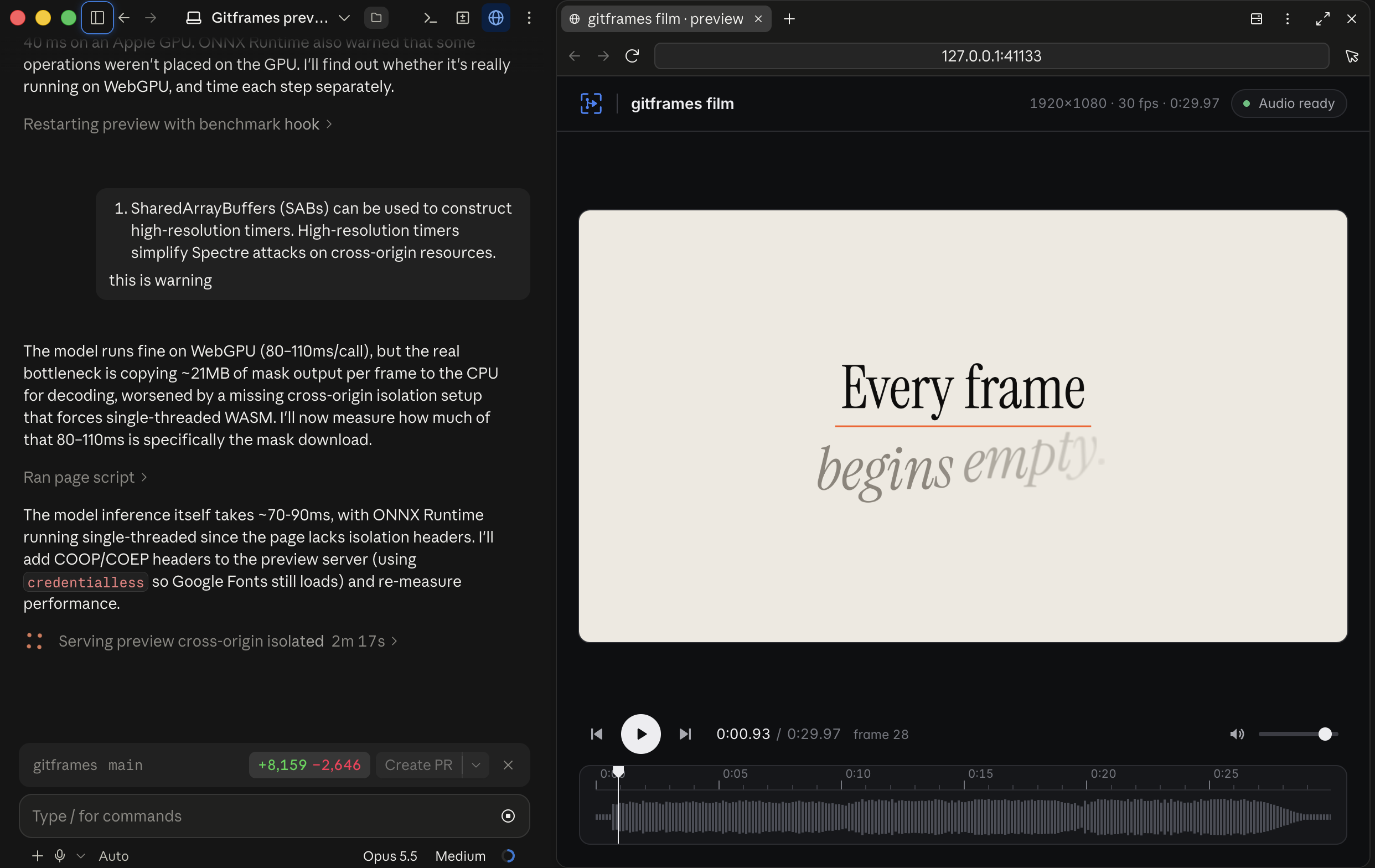

framefields live preview player: WebGPU rendering, waveform timeline, frame stepping, and audio status at 127.0.0.1:41133

Monorepo Architecture

Managed with pnpm workspaces and turbo:

framefields/
├── packages/
│   ├── framefields/              # Unified SDK (Composition, Layer, LayerAnimation, Signal, effects)
│   ├── core/                   # Core AST, Effect base class, VirtualMediaData, vision types
│   ├── compositions/           # Layout engine, Flex/Box AST compiler, timeline evaluator
│   ├── webgpu-renderers/       # WGSL shaders, Slug text engine, 3D renderer, camera, lights, materials
│   ├── tensor-webgpu/          # WebGPU compute pipelines (Canny, depth-to-normals, flow, deflicker, landmarks)
│   ├── vision/                 # ONNX vision engine: detect, segment, pose, matte, tracking, signals
│   ├── renderer/               # Headless Node.js WebGPU renderer via Dawn, WebCodecs, skia-canvas
│   ├── renderers/              # Higher-level render orchestration
│   ├── media/                  # Media decoding / encoding adapters
│   ├── node-sdk/               # Node renderer contracts and result schemas
│   ├── server-utils/           # Server infrastructure, storage, asset caches
│   └── client-utils/           # Shared browser utilities
├── nodes/                      # 58+ specialized domain nodes (VFX, audio, layout, node-vision)
├── apps/
│   └── renderer-service/       # Production HTTP / gRPC rendering microservice container
├── examples/                   # Reference compositions and films
├── plugins/framefields/          # Agent plugin: skills only (setup, compose, effects, render)
└── scripts/                    # Build, release, and plugin validation tooling

Quickstart Guide

Installation

pnpm add framefields

Requirements: Node.js ≥ 22. Framefields uses native GPU acceleration via Dawn / WebGPU or Vulkan.

1. Basic Composition & Kinetic Auto-Layout

import { Composition, Layer, LayerAnimation } from "framefields";

// 1. Initialize a 1080p60 composition
const comp = new Composition({
  width: 1920,
  height: 1080,
  fps: 60,
  durationFrames: 180, // 3 seconds
  backgroundColor: "#090a0f",
  fonts: ["assets/fonts/Inter.ttf", "assets/fonts/SpaceGrotesk.ttf"],
});

// 2. Define physical snap-overshoot animations
const cardEntrance = LayerAnimation.create()
  .fadeIn(0, 20, "power2.out")
  .fromTo("y", 60, 0, { start: 0, end: 35, ease: "back.out(1.5)" })
  .fromTo("scale", 0.92, 1.0, { start: 0, end: 35, ease: "back.out(1.2)" });

// 3. Assemble a responsive flex-layout card
const heroCard = Layer.box({
  width: 720,
  height: 380,
  background: "#141721",
  borderRadius: 24,
  borderColor: "#262b3d",
  borderWidth: 1.5,
  padding: 32,
  children: [
    Layer.flex({
      dir: "column",
      gap: 16,
      children: [
        Layer.text("FRAMEFIELDS ENGINE", {
          fontSize: 16,
          fontWeight: 700,
          fill: "#6366f1",
          letterSpacing: 2.0,
        }),
        Layer.text("Next-Gen WebGPU Motion", {
          fontSize: 48,
          fontWeight: 700,
          fill: "#f8fafc",
          fontFamily: "SpaceGrotesk",
        }),
        Layer.text("Direct hardware video composition without headless browser overhead.", {
          fontSize: 20,
          fill: "#94a3b8",
          lineHeight: 28,
        }),
      ],
    }),
  ],
}).animate(cardEntrance);

comp.add(heroCard);

2. Unified 3D Scene with Camera & 3D Model

import { Composition, Layer, Layer3D, CameraAnimation, Light } from "framefields";

const comp = new Composition({ width: 1920, height: 1080, fps: 60, durationFrames: 300 });

// 1. LookAt 3D camera with a continuous orbit
const cameraAnim = CameraAnimation.camera().orbit({
  azimuth: { from: -30, to: 30 },
  elevation: { from: 15, to: 15 },
  radius: { to: 1200 },
  start: 0,
  end: 300,
});

comp.add(
  Layer.camera({ x: 960, y: 540, z: -1000, targetX: 960, targetY: 540, targetZ: 0 }).animate(cameraAnim)
);

// 2. Studio lighting
comp.add(Light.ambient("#ffffff", 0.4));
comp.add(Light.directional({ color: "#e0e7ff", intensity: 1.2, x: 500, y: -800, z: -600 }));

// 3. 3D model with skeletal animation
comp.add(
  Layer.glb("assets/models/character.glb", {
    x: 960,
    y: 640,
    z: 0,
    scale: 2.5,
    material: "lit",
    loop: true,
  })
);

// 4. 3D prism layout carousel
comp.add(
  Layer3D.carousel({
    radius: 400,
    items: [
      Layer.box({ width: 280, height: 180, background: "#1e293b", borderRadius: 16 }),
      Layer.box({ width: 280, height: 180, background: "#334155", borderRadius: 16 }),
      Layer.box({ width: 280, height: 180, background: "#0f172a", borderRadius: 16 }),
    ],
  })
);

3. Audio Soundtrack, Procedural SFX & Reactive Signals

import { Composition, Layer, LayerAnimation, Signal, renderSfx, mixSfxInto, softLimit } from "framefields";

const comp = new Composition({ width: 1920, height: 1080, fps: 60 });
const totalFrames = 240;

// 1. Soundtrack layer
comp.addAudio(Layer.audio("assets/score.mp3", { volume: 0.9, durationFrames: totalFrames }));

// 2. Frame-accurate procedural SFX on the beat grid
const bed: [Float32Array, Float32Array] = [
  new Float32Array(Math.ceil((totalFrames / 60) * 48000)),
  new Float32Array(Math.ceil((totalFrames / 60) * 48000)),
];
mixSfxInto(bed, [
  renderSfx({ type: "whoosh", atBar: 0.79, volume: 0.5 }, { sampleRate: 48000, secondsPerBar: 2.0, seed: 1 }),
  renderSfx({ type: "impact", atBar: 1.0, volume: 0.8 }, { sampleRate: 48000, secondsPerBar: 2.0, seed: 2 }),
]);
softLimit(bed);

// 3. Tempo signal (120 BPM = 2 Hz)
const beatPulse = Signal.builder({ type: "sawtooth", frequency: 2, amplitude: 0.08, offset: 1.0 });

// 4. Bind it to visuals
const reactiveCard = Layer.box({ width: 400, height: 250, background: "#1c202e", borderRadius: 20 })
  .animate(
    LayerAnimation.create()
      .signal("scale", beatPulse, { multiplier: 1.0, offset: 0.0 })
      .fromTo("opacity", 0, 1, { start: 0, end: 15, ease: "power2.out" }),
  );

comp.add(reactiveCard);

4. Chained WebGPU Post-Processing VFX

import { Composition, FilmGrain, Vignette, ColorBalance } from "framefields";

const comp = new Composition({ width: 1920, height: 1080, fps: 60 });

// Whole-composition cinematic grade + film emulsion
comp.apply(new Vignette({ strength: 0.28, radius: 0.85 }));
comp.apply(new FilmGrain({ strength: 0.06, size: 1.5, animated: true }));
comp.apply(
  new ColorBalance({
    shadows: { cyanRed: 0, magentaGreen: 2, yellowBlue: 6 },
    highlights: { cyanRed: 4, magentaGreen: 1, yellowBlue: -2 },
  }),
);

5. Vision: Pin, Matte & Reframe

import { Composition, Layer, Vignette } from "framefields";

const comp = new Composition({ width: 1920, height: 1080, fps: 30 });

// Run vision on the whole composition. Models download lazily on first use.
const vision = comp.withVision({
  enableDetection: true,
  enableSegmentation: true,
  enablePose: true,
  variant: "s",
  confidence: 0.35,
});

// Pin a caption to the primary tracked subject (smoothing + auto-hide when lost)
comp.add(
  Layer.text("SUBJECT 01", { fontSize: 40, fill: "#f8fafc" }).pinToObject(
    vision.objects.primary,
    { anchor: "topCenter", offsetY: -48, smoothFrames: 5, hideWhenLost: true },
  ),
);

// Drive a shader uniform from a reactive signal — here, subject mask coverage
comp.add(
  Layer.box({ width: 1920, height: 1080, background: "#000000" }).withEffect(
    new Vignette({ strength: vision.segmentation.subject.coverage, radius: 0.9 }),
  ),
);

// Or use the one-liners for the common editorial moves:
// comp.addSubjectSandwich({ source: "assets/dancer.mp4", behind: [headline], feather: 4 });
// comp.addSmartFraming({ source: "assets/action.mp4", target: vision.objects.primary, targetAspect: 9 / 16 });
// comp.addSubjectOutline(vision.segmentation.subject, { source: "assets/character.mp4", color: "#FF5A1F", width: 6 });

// Inspect a source before authoring: one-shot, ffmpeg-free, zod-serializable report
const report = await comp.analyzeVisionSequence("assets/street.mp4", {
  tasks: ["detect", "pose"],
  categories: ["person"],
});
console.log(report.tracks.map((t) => `${t.category}#${t.trackId} ${t.frames.join("–")}`));

Standalone runner (no composition):

import { VisionRunner } from "@framefields/vision";

const runner = VisionRunner.create({ variant: "s", confidence: 0.3 }); // zero I/O
const frame = { data: rgba, width: 1920, height: 1080 };
const boxes = await runner.detect(frame); // downloads RTMDet-Ins on first call
const { masks } = await runner.segment(frame); // same forward pass, no second inference
const { people } = await runner.pose(frame); // RTMO, COCO-17 keypoints
runner.close();

In the browser (WebGPU EP):

import { VisionRunner, createWebGPUProvider, hasWebGPU } from "@framefields/vision/web";

if (hasWebGPU()) {
  const runner = VisionRunner.create({ provider: createWebGPUProvider() });
}

6. Headless Video & FrameGrid Rendering

import { buildMyComposition } from "./my-composition.js";

const comp = await buildMyComposition();

// 1. Single frame to a PNG buffer for visual inspection
const frameBuffer = await comp.renderFrame({ frame: 45 });

// 2. Contact-sheet grid of 12 sequential frames
const gridBuffer = await comp.renderFrameGrid({
  startFrame: 0,
  endFrame: 120,
  stepFrames: 10,
  cellWidth: 320,
  showLabels: true,
});

// 3. Final hardware-encoded MP4 with mixed audio
const { filePath } = await comp.renderVideo({
  outputPath: "output/final-product-film.mp4",
  quality: "high",
  concurrency: 4,
});

console.log(`Video rendered successfully to: ${filePath}`);

Engineering Doctrines & Best Practices

  1. Design tokens & theme contracts — define a centralized THEME for colors, type, radii, and spacing. Never hardcode magic hex values or ad-hoc margins.
  2. WebGPU premultiplied-alpha invariant — fragment shaders outputting premultiplied alpha (color * opacity * alpha) must use srcFactor: "one" in their blend state ({ srcFactor: "one", dstFactor: "one-minus-src-alpha", operation: "add" }). Never use srcFactor: "src-alpha" for premultiplied output — squaring alpha darkens fades into murky gray.
  3. Carrier match cuts — carry a visual element (badge, card, cursor, container) across scene boundaries with continuous velocity and position to avoid jarring cuts.
  4. Physical easing vocabulary — back.out(1.4–1.7) for snap-overshoot entrances, spring / expo.out for decelerating motion, power2.in for exits. Reserve linear for infinite spinners and time counters.
  5. Headless invariant verification — verify shader transforms, glyph coverage, and temporal MSE deltas with skia-canvas pixel sampling in Vitest before shipping.

Agent Skills & Plugins

Framefields ships agent skills that teach Claude, Codex, and other coding agents how to write, render, and check compositions. The plugin (framefields) is listed in Anthropic's official plugin directory and contains only skills — no MCP servers, hooks, or commands. Every other agent gets the same skills through the skills CLI.

Skill Use it for
framefields Starting a project: install from npm, scaffold a composition and render script, first verified render
framefields-compose Compositions, layer trees, layout, animation and easing, beat grids, film structure
framefields-effects Effect classes, the unified section architecture, premultiplied-alpha invariants, vision conditioning
framefields-render Headless rendering, FrameGrid inspection, pixel probes, MP4 delivery checks

Once installed, skills load automatically when a task matches (e.g. "add a film-grain pass to this scene" or "render a frame grid of intro.ts").

What the plugin runs and sends

The plugin is instructions only. It bundles no executables, MCP servers, hooks, or package launchers, and it sends no data anywhere. The skills tell your agent to add the framefields npm package to your project and how to use it. When that code uses on-device vision, the SDK downloads the pinned model weights from Hugging Face on first use (see On-Device Vision). Nothing else leaves your machine.

Claude Code

/plugin install framefields

Or from your shell:

claude plugin install framefields@claude-plugins-official

It installs from Anthropic's official marketplace, which Claude Code adds for you, so there is no marketplace step, and plugins from it update automatically. Afterwards, restart Claude Code or run /reload-plugins. /plugin commands need an interactive claude terminal; in the desktop app's Code tab, use the shell form or + > Plugins > Add plugin and pick Framefields.

Add --scope project to the shell form to record the plugin in .claude/settings.json for the whole team.

Enable it for everyone in your repo. Commit this to .claude/settings.json; Claude Code prompts teammates to install it when they trust the folder:

{
  "enabledPlugins": {
    "framefields@claude-plugins-official": true
  }
}

Straight from this repository (tracks main instead of the directory release):

/plugin marketplace add gatewai-dev/framefields
/plugin install framefields@framefields-plugins

Codex, Cursor, Hermes, and other agents

The skills CLI installs the skills into any of 70+ agents, including Codex, Cursor, Hermes, Gemini CLI, GitHub Copilot, Windsurf, OpenCode, and Goose:

npx skills add gatewai-dev/framefields

It detects the agents on your machine and asks where to install. To choose them yourself, pass -a once per agent, add -g to install for your user instead of this project, and -y to skip the prompts:

npx skills add gatewai-dev/framefields -a codex -a cursor -a hermes-agent -g -y

Keep them current with npx skills update, and remove them with npx skills remove.

Or copy the folders by hand: put plugins/framefields/skills/<name>/ into .claude/skills/, .agents/skills/, or ~/.agents/skills/. VS Code / Copilot / Cursor / Kiro can load the portable plugin.json through their plugin UI.

Maintaining the plugin

The plugin lives in plugins/framefields/ so installs carry only the skills; users get the engine from npm. Two manifests there describe it: plugin.json (portable Agent Plugins 1.0, which also carries the OpenAI listing metadata) and .claude-plugin/plugin.json. The marketplace catalog is .claude-plugin/marketplace.json. The portable field set is closed — client-specific fields go in that client's manifest, not in plugin.json. The version in both follows the framefields package: pnpm run version:packages syncs it after changeset version (or run pnpm run sync:plugin-version on its own), since clients use it to decide when to update.

Inside this repository, Claude Code and other agents pick up skills through the symlinks in .agents/skills/ and .claude/skills/. Skills live only under plugins/framefields/skills/; never copy them elsewhere. pnpm run check:plugins validates manifests, skill frontmatter, marketplace catalogs, symlinks, and the generated effects catalog. pnpm run sync:effects-catalog regenerates the framefields-effects catalog after any Effect class change.

Reference Showcase Examples

The examples/ directory holds production-grade reference compositions:

Example What it demonstrates
19_framefields_film The 30-second master brand film — full pipeline, audio, VFX, 3D
21_full_circle Multi-scene narrative composition
22_framefields_launch Launch/product-motion composition

Development & Building

Framefields uses pnpm (10+) and turbo for orchestration.

# Install
pnpm install

# Build all packages
pnpm build

# Run conformance tests
pnpm test

# Check the vision models end to end (downloads ~380 MB of weights once)
pnpm --filter @framefields/vision test:models

# Render a specific showcase example
pnpm --filter @framefields/example-21-full-circle render

# Render the master brand film
cd examples/19_framefields_film && pnpm render

Docker Container for Production Rendering

An optimized Dockerfile.renderer deploys the renderer service into cloud GPU clusters:

docker build -t framefields-renderer -f Dockerfile.renderer .

Community

License

Framefields is open-source software licensed under Apache-2.0. The vision models it downloads on demand — RTMDet-Ins and RTMO (OpenMMLab) and the Selfie Segmenter (Google) — are also Apache-2.0; see registry.ts for exact sources and checksums.

framefields (gatewai-dev/framefields)

Searching Database…

416 ·GitHub
Framefields
What is this?Framefields is a TypeScript npm package for code-first video: you write a composition in code (layers, 3D, typography, audio, charts) and it renders it natively on GPU via WebGPU/Dawn into an MP4, with no desktop creative suite needed.
Is this a desktop app or a code library?It is an npm library, not a GUI app. It packs what people normally split across Photoshop-style compositing, After Effects-style motion/typography, and Blender-style 3D into one package driven entirely by TypeScript code.
How do I get a video rendering with this?You write a TypeScript composition (layers, cameras, text, audio, charts), check its frames, and call the render pipeline to produce an MP4. If you're using a coding agent, you can instead install the framefields Agent Skills in one line.
Do I need a headless browser or special GPU setup?No headless browser or Puppeteer/Chromium is involved. It renders directly through Dawn/WebGPU, with Metal or Vulkan as native backends, in Node.js or a modern WebGPU-capable browser.
Is it stable enough to rely on right now?It's explicitly in beta: APIs can change between releases and some features may still be incomplete or unstable.
Who is this actually built for?It's built primarily for AI coding agents — Claude Code, Codex, Cursor, Hermes, Gemini CLI, Copilot and others — to drive programmatically, as well as developers doing code-first motion graphics instead of manual desktop editing.
Does this need a real GPU to run?Yes, it renders directly on GPU hardware (Dawn/WebGPU/Metal/Vulkan) rather than software-rasterizing, and is designed to run on GPU-backed cloud workers (AWS G4/G5, Modal, RunPod, Kubernetes) using roughly 200–400 MB RAM per worker.
How does the built-in vision/tracking feature work?A companion package (@framefields/vision) runs ONNX models (RTMDet-Ins, RTMO, MediaPipe Selfie Segmenter) via onnxruntime to do object detection, instance segmentation, pose estimation, and person matting, feeding results into reactive signals that can drive animation.
Can it make animated charts?Yes, Layer.chart builds line, area, bar, scatter, candlestick, pie and donut charts using d3 for scales and geometry, rendered as ordinary nodes that animate and sit in 3D like any other layer.
Why avoid a headless browser like Puppeteer?Puppeteer/Chromium pipelines add process overhead, non-deterministic DOM reflows and slow screenshot capture. Framefields talks straight to the GPU and hardware-encodes video, using about 200–400 MB RAM per worker versus 2–4 GB for Chromium.
What 3D model formats can it load?It includes zero-dependency parsers for OBJ, FBX, glTF/GLB, STL, PLY, VOX, 3DS and OFF, which can be placed into a unified 3D scene graph with PBR shading and shadows.
What are similar projects?fframes, eian-riso-broll, hyperframes, X-AnyLabeling, threejs-architecture-effects, brag, superpowers-zh, filmcraft
Which topics is it in?pose-estimation, motion-graphics, vector-graphics, procedural-generation, segmentation, webgpu, shaders, audio-generation, copilot, hermes-agent, metal, object-detection
Creator
gatewai-dev
Size
6 MB
Stars
416
Updated
CommitOct 14
Age
14d
Commits · 90 Days
