Orbit

Orbit is a native desktop workbench for the pi coding agent — a chat-style GUI rendered entirely in Rust on GPUI, the GPU-accelerated UI framework Zed is built on. It speaks the pi CLI's RPC protocol directly over stdio: no browser, no webview, no Node.

Sessions you create in Orbit and in the terminal are the same sessions (~/.pi/agent/sessions/), managed by pi's own session manager.

Screenshots

A live session — streaming transcript, tool rows, and the composer:

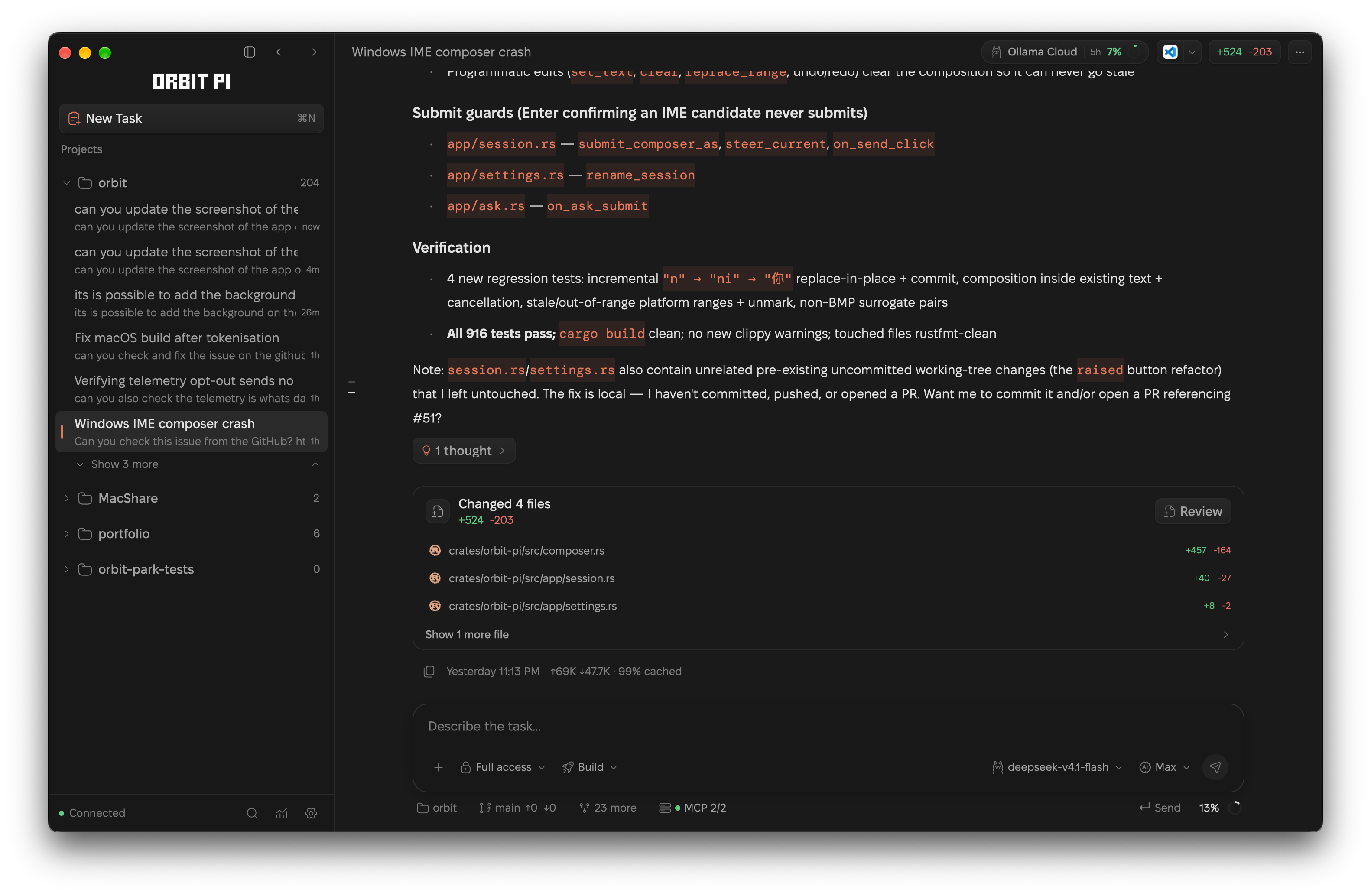

A completed Orbit session: the agent's notes on the Windows IME composer fix and a Changed 4 files card with per-file line counts, above the composer.

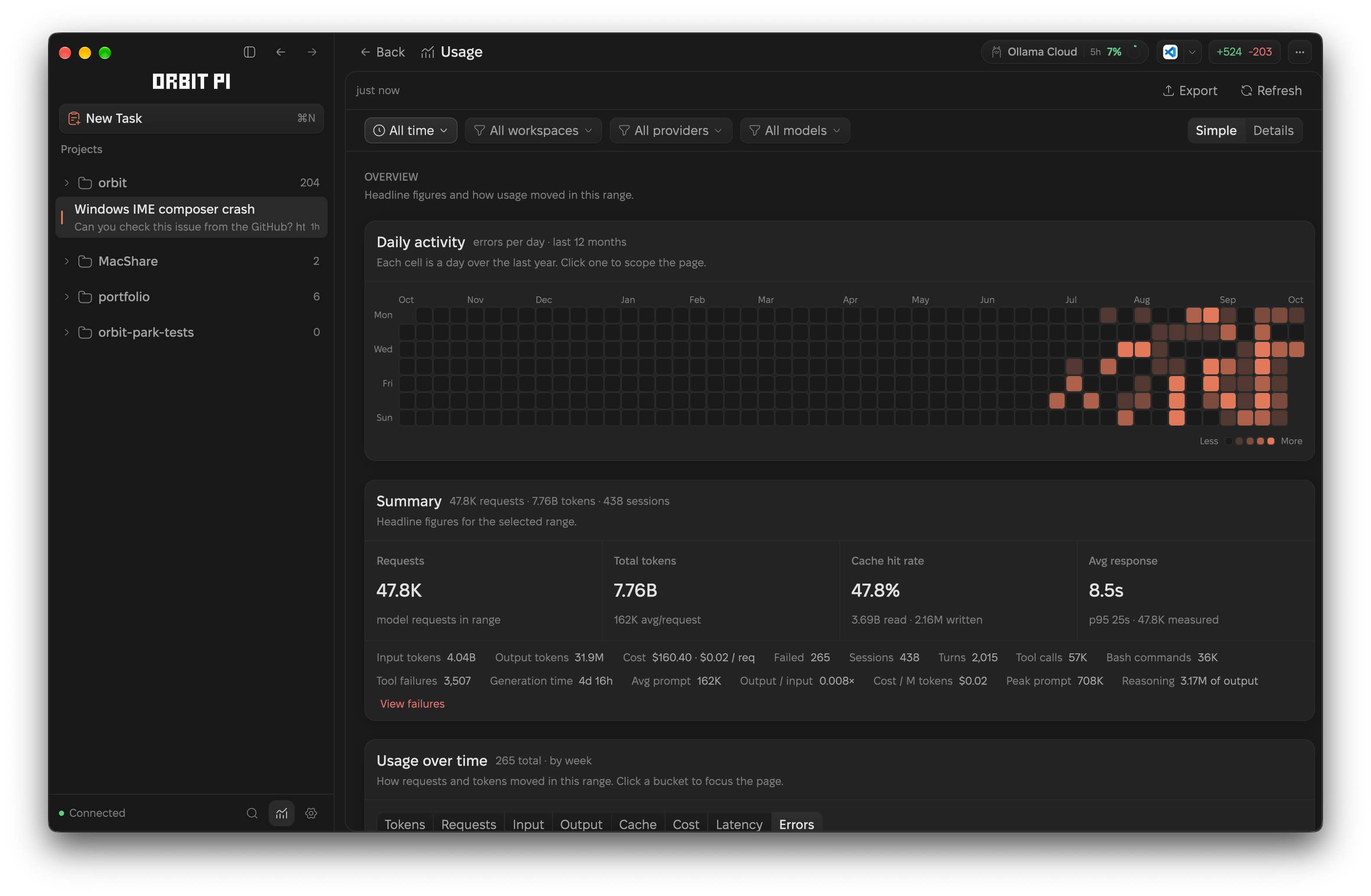

Usage — requests, tokens, cost, and cache, read from your own sessions:

Orbit's Usage page with request, token, cost, and cache metrics above a tokens-over-time chart.

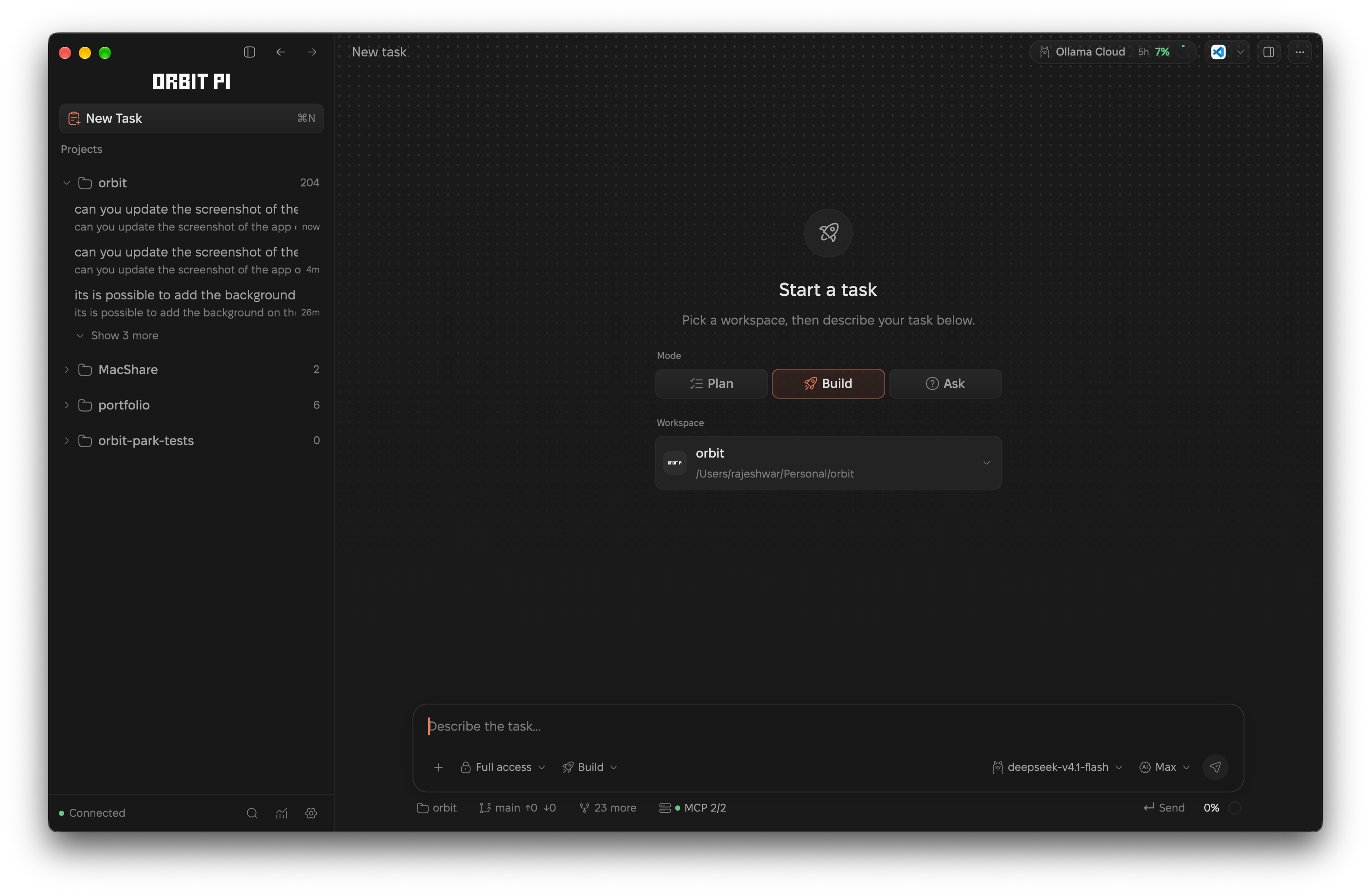

New task	Review

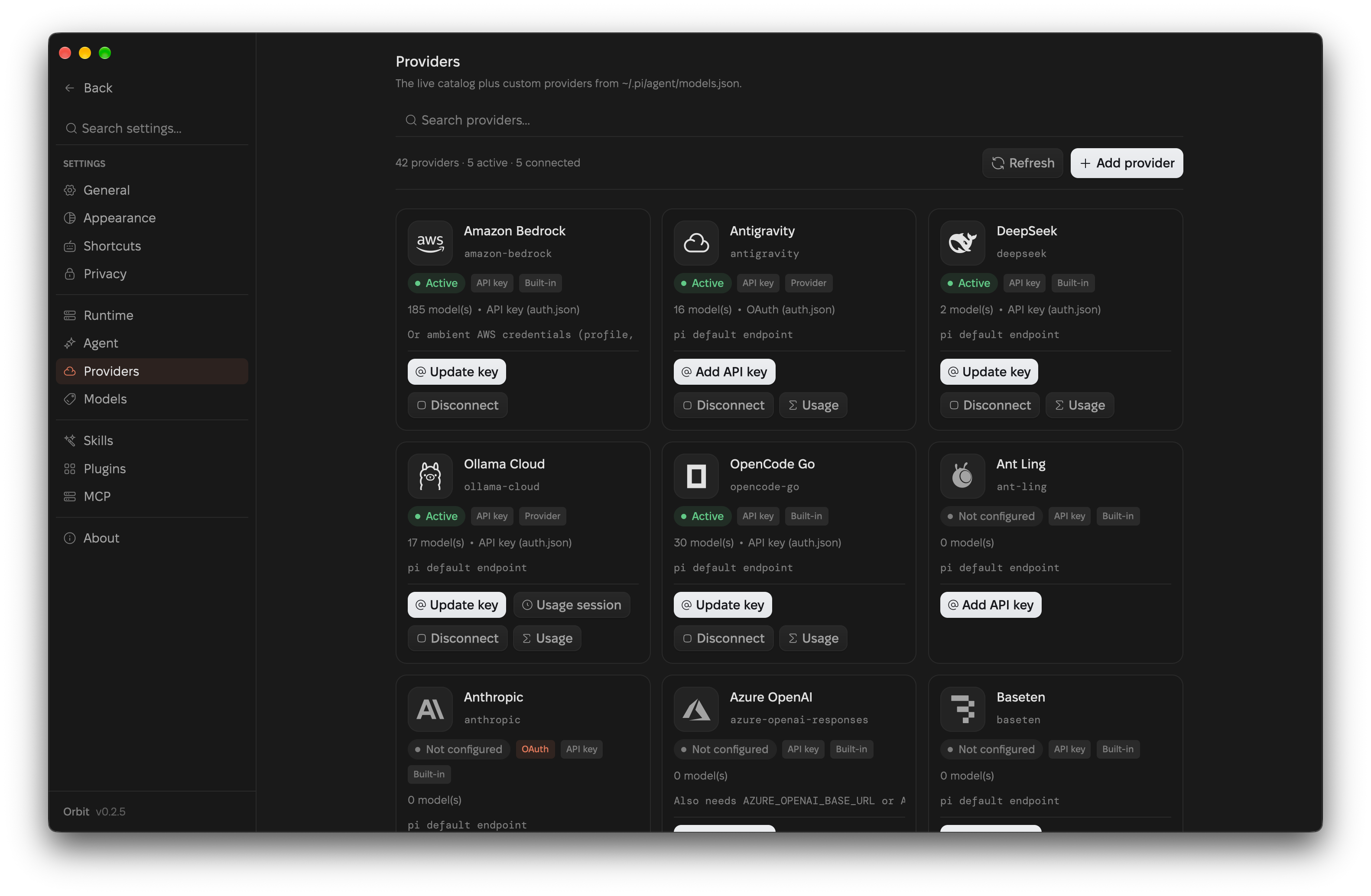

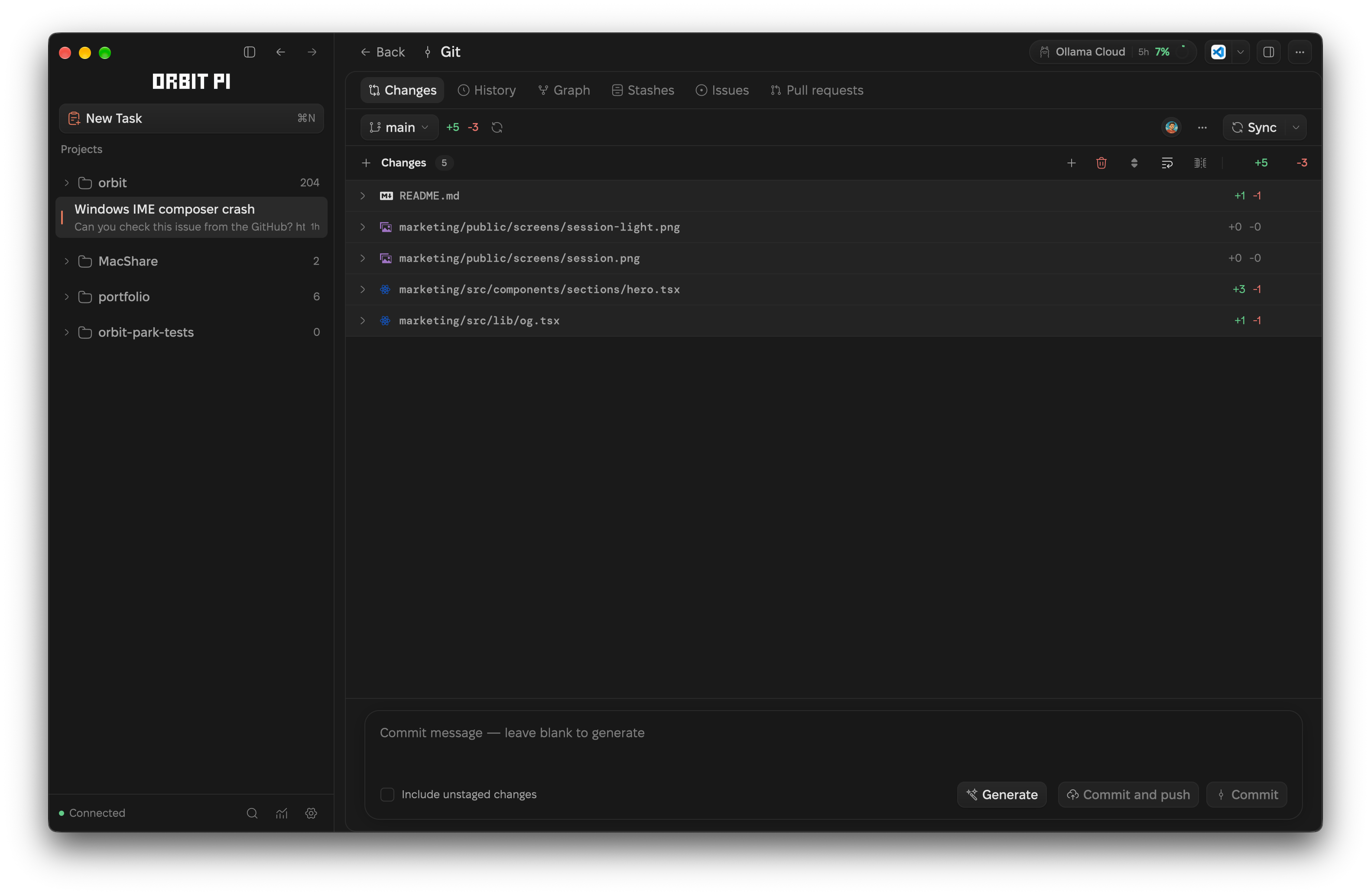

Git	Providers

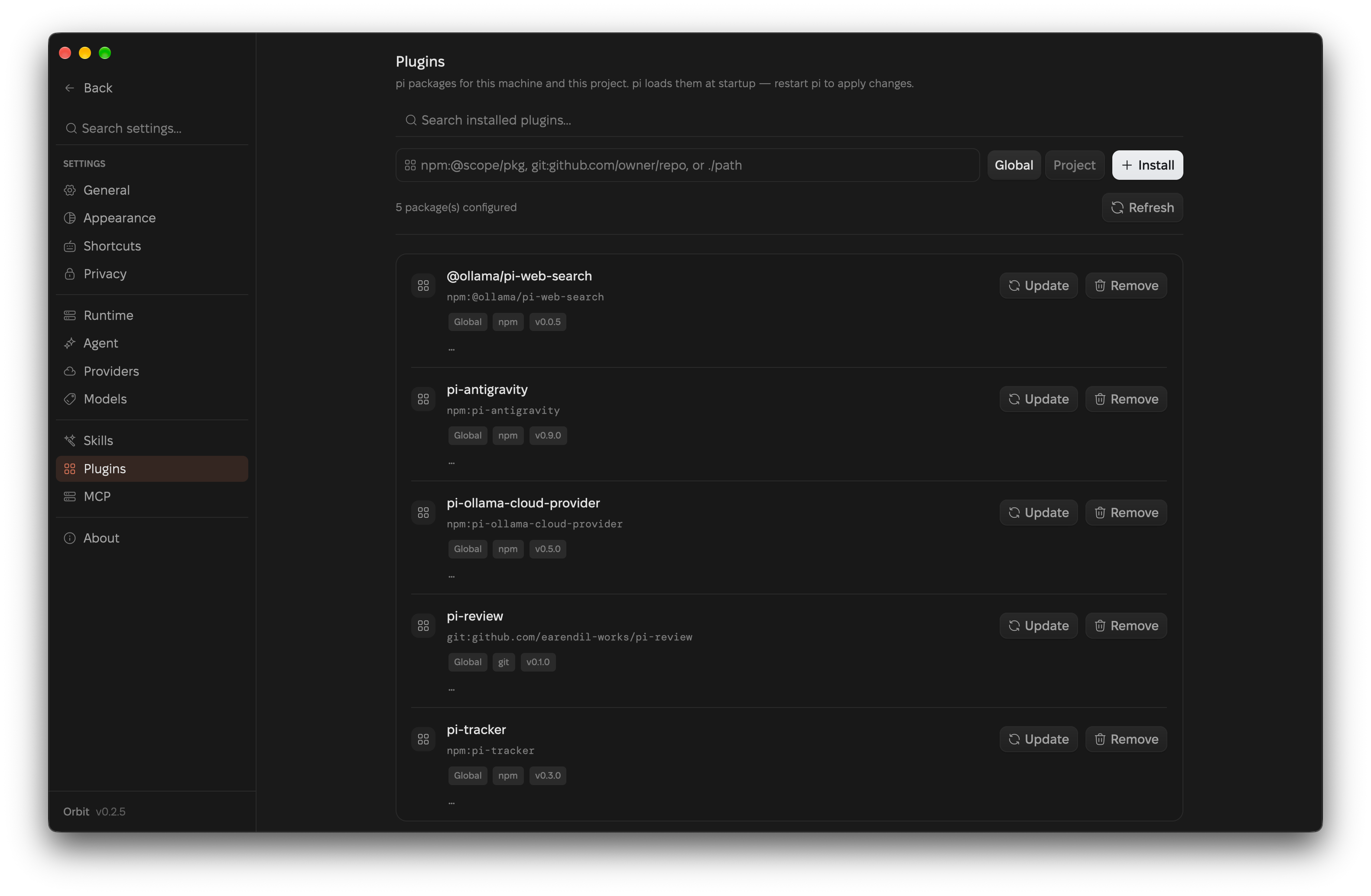

Plugins	Skills

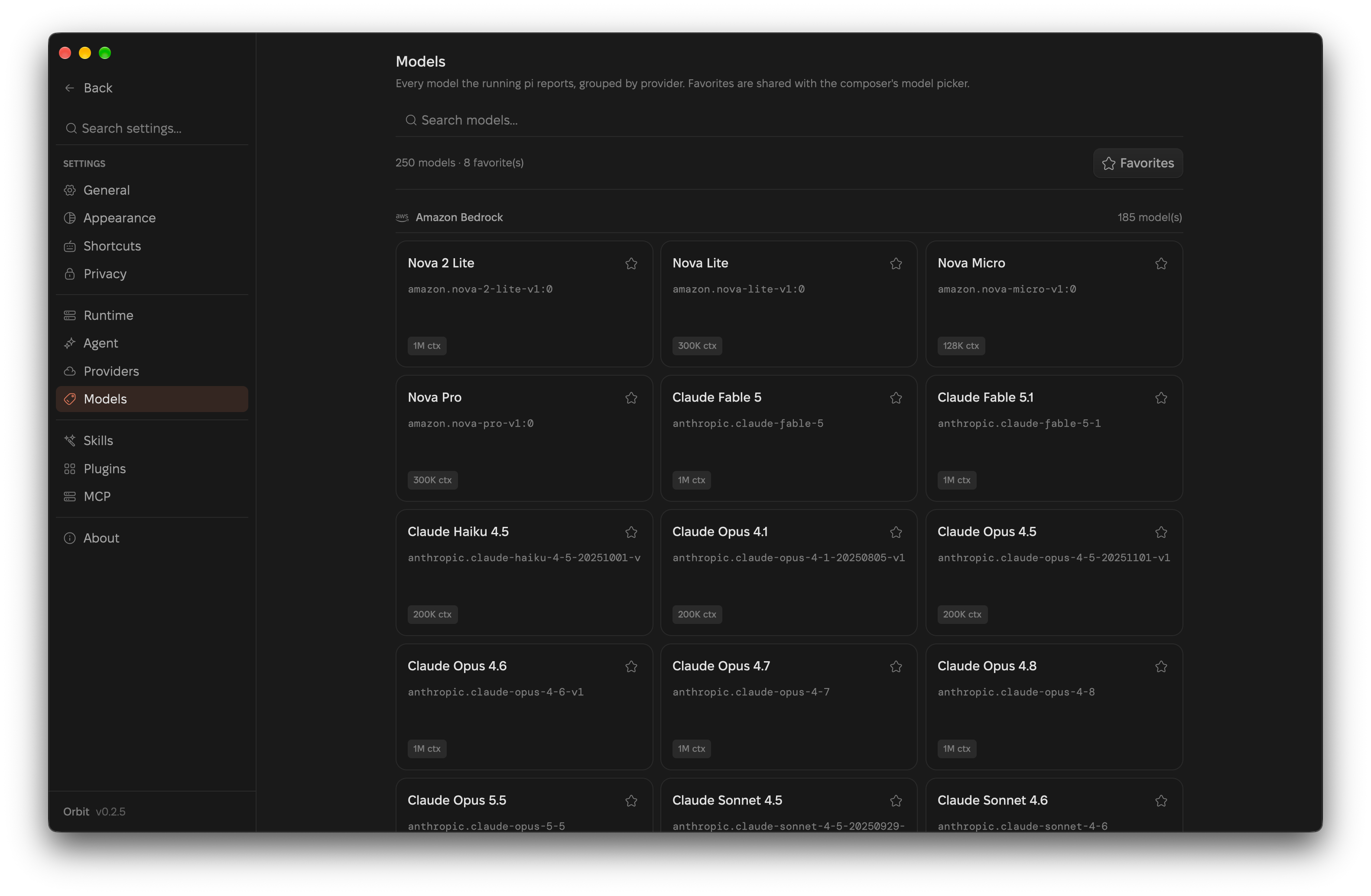

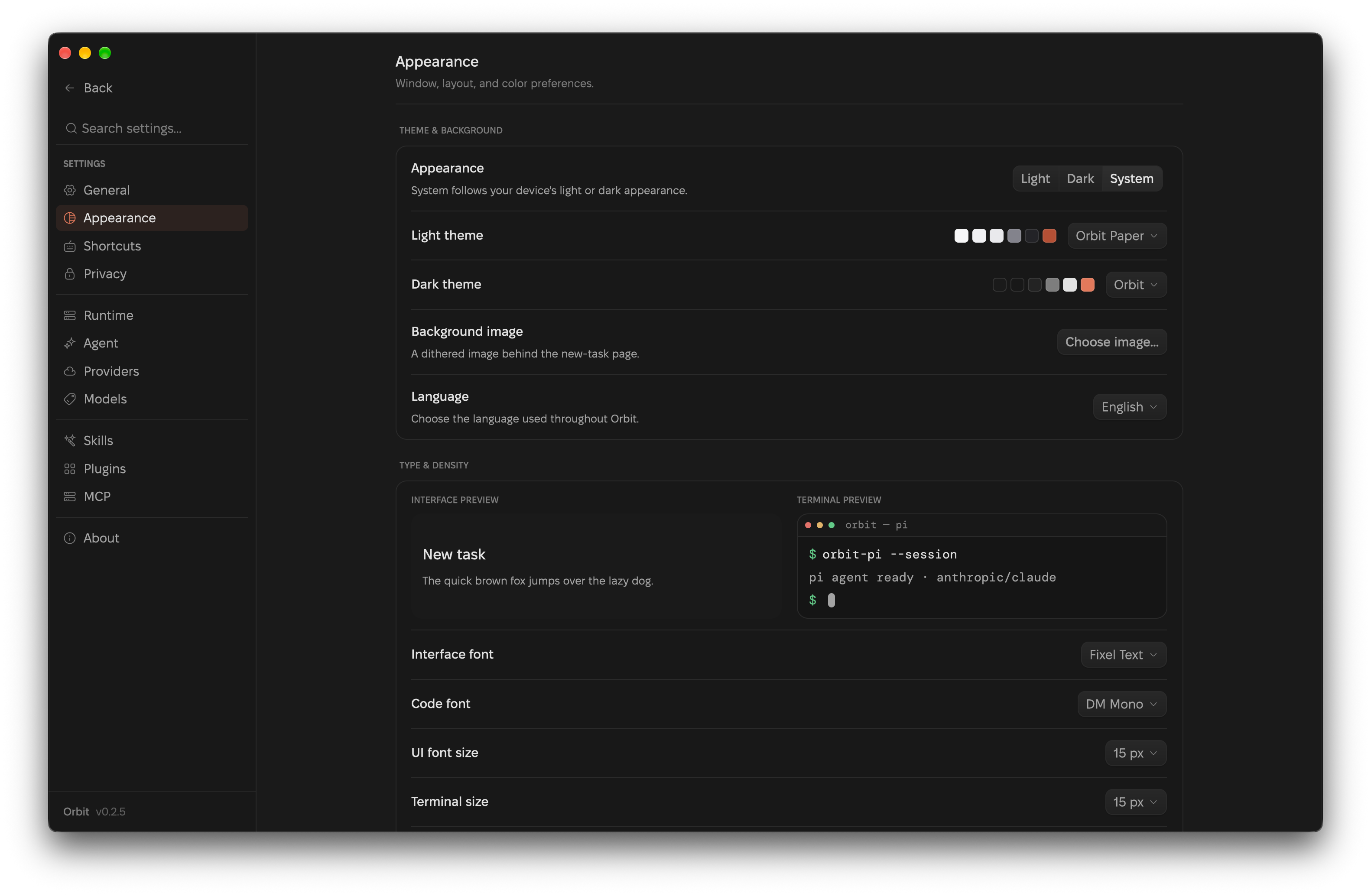

Models	Appearance

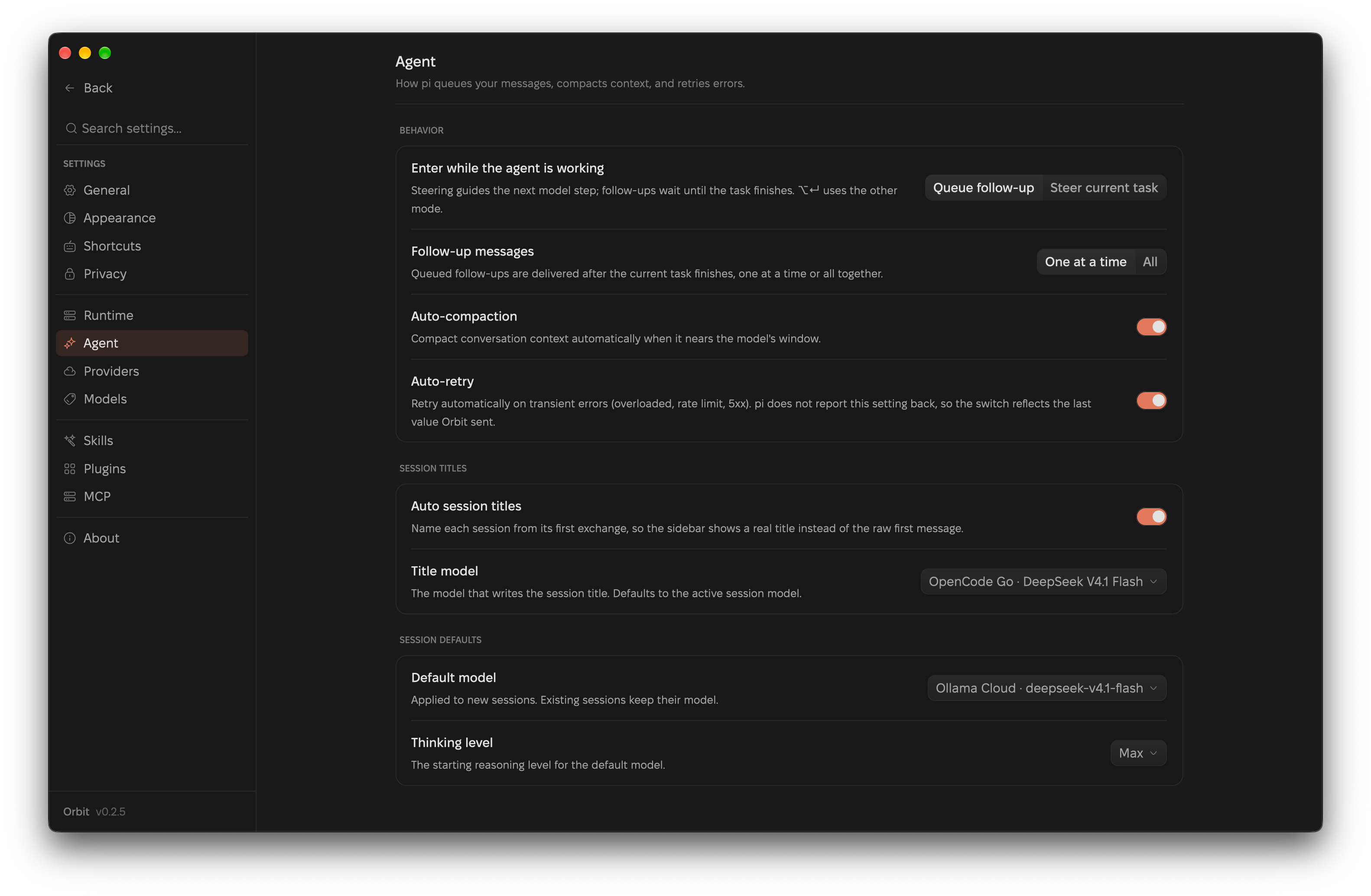

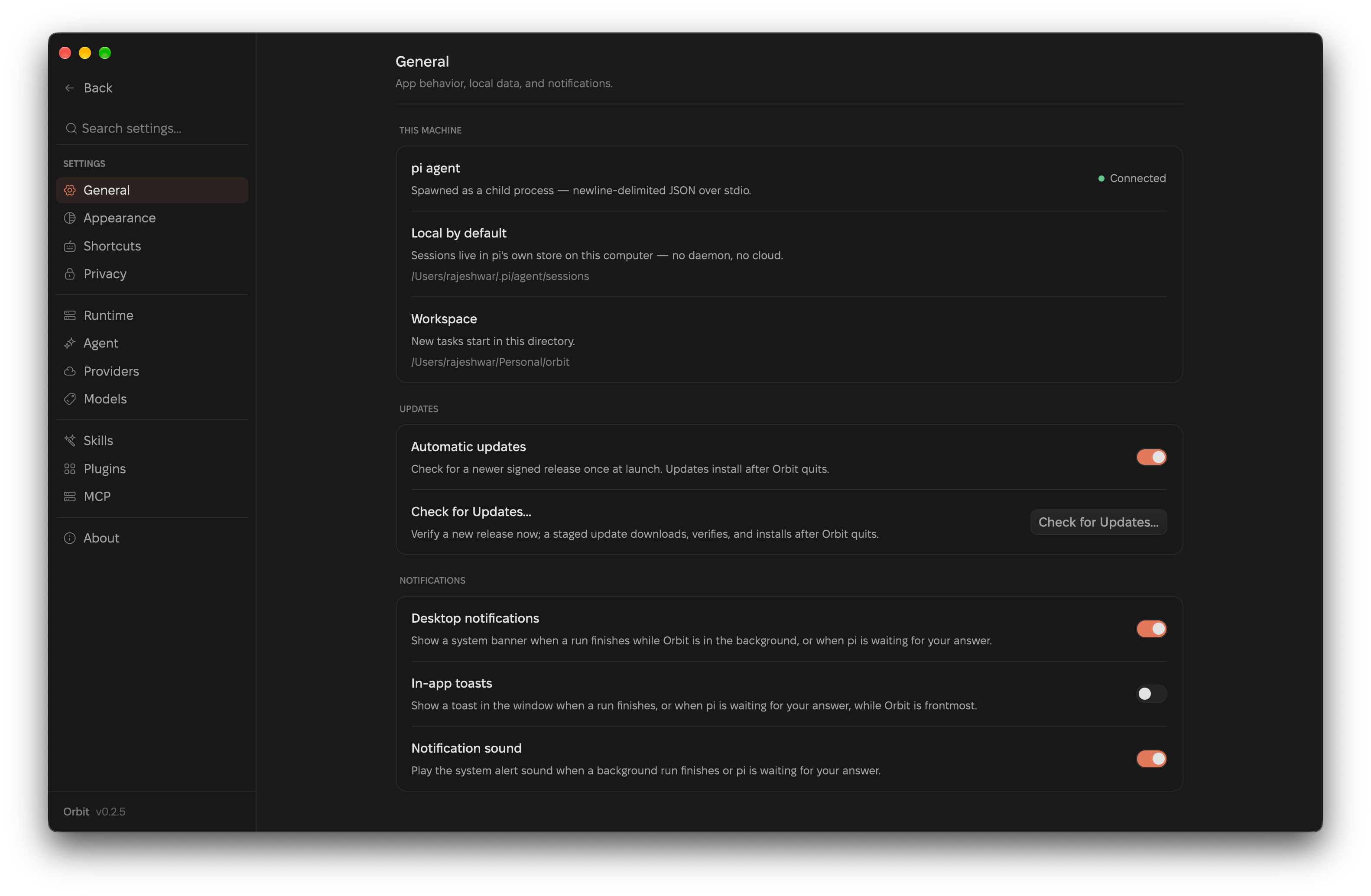

General	Agent

Features

Chat and transcript

Chat-style agent sessions — composer with model selection, thinking effort, follow-up queueing, mid-run steering, cancel, and streaming replies
A send is in flight from the keystroke: pressing Enter flips the composer to Stop and starts the live “Working for…” row at the send, instead of waiting for pi’s first streamed token. A second Enter queues a follow-up rather than racing a second prompt, and a prompt pi rejects unwinds that state
Enter behavior — Settings → Agent → Behavior picks what Enter does: queue a follow-up (default) or steer the running task. Alt/Option+Enter uses the other mode, and ⌘⇧Enter / Ctrl+Shift+Enter always steers
Compact hints immediately left of the context-window indicator show both sending modes while the agent is working. Steering takes effect after the current response and tools finish; idle Enter sends normally, and Shift+Enter inserts a new line
Workflow modes — scope a session to Plan, Build, or Ask: Plan and Ask are read-only (write tools disabled, bash gated), so you can explore and plan before switching to Build
GPU-rendered transcript — virtualized so cost is independent of message count, with stick-to-latest streaming and coalesced commits
GFM markdown and syntax-highlighted code; highlighting is paint-only so streaming code blocks never reflow, and Mermaid fences stay copyable code blocks
In-transcript find (⌘F) and a full-window image lightbox
Compressed image attachments — images you attach or paste are downscaled and re-encoded at ingest (1400 px longest edge, 512 KiB base64, JPEG; transparency keeps lossless WebP), so a large screenshot no longer bloats the prompt or the session history; the status line reports the before/after size
Tool activity — bash, edit, read, and thinking rows drawn natively, expanding into Arguments/Output cards with per-section copy

Sessions

Grouped by project, persistent, reopenable, and cross-workspace
Orbit-owned project list — remove a workspace from the sidebar without deleting pi's sessions
Sort projects by last activity, recently added, name, or session count
Rename, pin, clone, or delete sessions, and copy a session id; pinned sessions sort first
Address sessions by position — ⌘1…⌘9 (Ctrl+1…9) opens the Nth visible session, Ctrl+Tab / Ctrl+Shift+Tab cycle them
Sessions written by the CLI or another window refresh the sidebar live
Background turn notifications — a desktop banner and alert sound when the window isn't frontmost, an in-app toast otherwise, and a heads-up when a run is waiting on an extension dialog

Safeguards

Access modes — Supervised, Auto-accept edits, or Full access, chosen from the composer
Enforced by a bundled pi extension that hooks tool_call and confirms mutating calls the mode does not auto-approve
An inline bar above the composer offers Allow once / Always allow this tool / Deny (↑ ↓ ⏎ esc), with the allowlist recorded per mode
A confirmation guard, not a sandbox — pi ships no sandbox, and Orbit does not add one

Review and Git

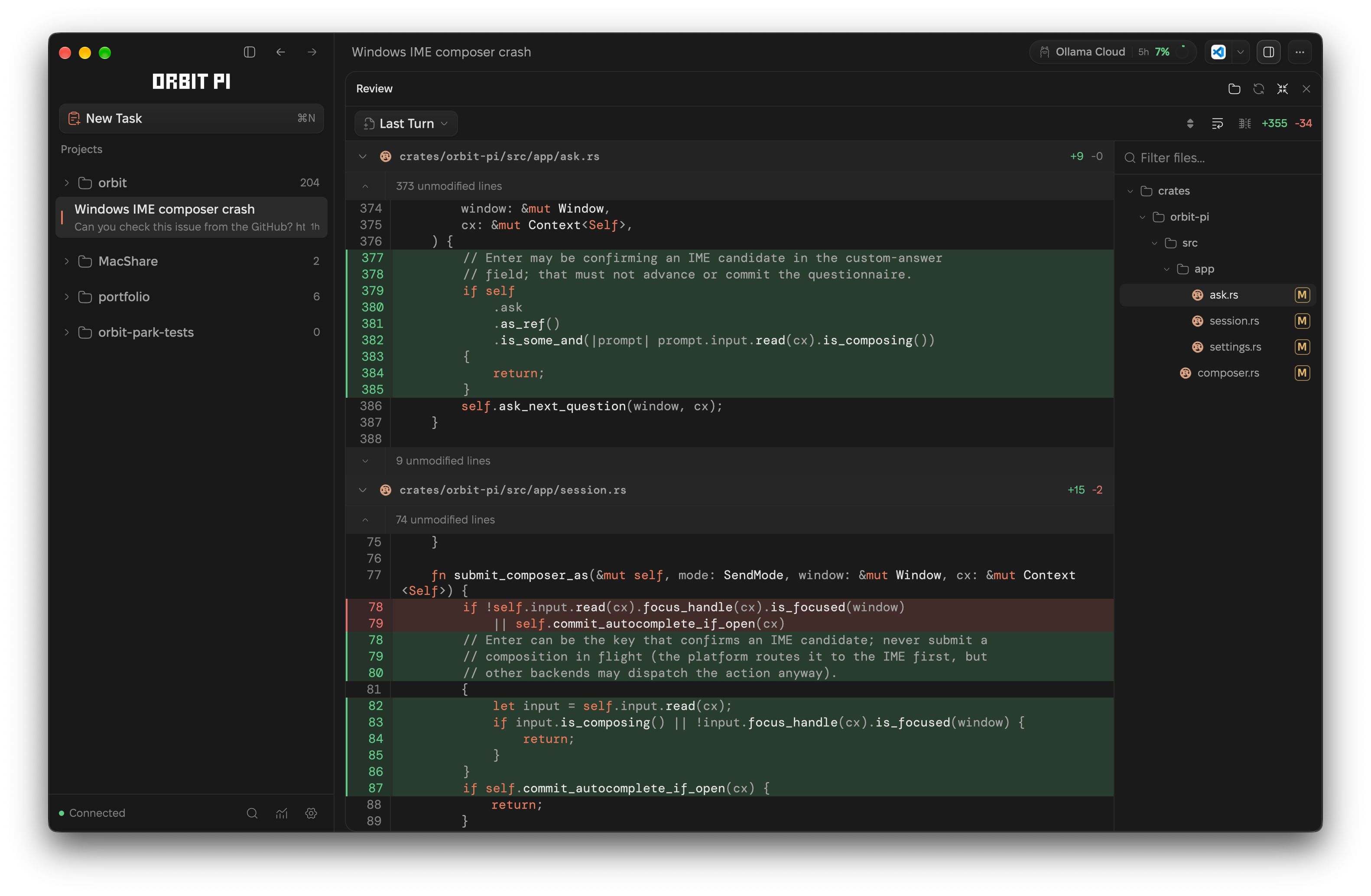

Review side pane with selectable sources — Last Turn (exactly what one agent turn changed, from per-turn checkpoints), Uncommitted, Unstaged, Staged, Committed, and Branch, refreshed when a run settles
Diff view controls: collapse or expand each file, wrap or pan long lines, unified or side-by-side rows, docked / full-page / minimized, and full keyboard operation (Tab focus stops, arrows, n / p between files, [ / ] between hunks)
Git page for Changes / History / Graph / Stashes: staging, commit (⌘↵), stash push/pop/apply/drop, sync, push (including force-with-lease), pull, fetch, merge, and rebase, with recovery actions for rejected pushes and conflicts
Git page's Issues and Pull requests tabs through gh: browse and filter, file issues and PRs, comment, apply labels, close/reopen, review, merge, and check out a PR's branch — with repository templates and an AI Generate action that drafts a title and body from the branch, its commits, optional notes, and the repo's own template
Git worktrees as first-class workspaces — a Worktrees page lists and creates worktrees (repo/.wt/113 → feature/issue-113), opens them as the active workspace so the Explorer, terminal, Git page, Review, and agent all run there, and supports rename / move / lock / remove / prune / repair
The status bar's Work in chip switches between Local and any worktree, or opens a quick create with a custom worktree name
An optional per-repository setup script runs asynchronously with ORBIT_ROOT_PATH and ORBIT_WORKTREE_PATH

Explorer and Files

Project panel (⌘⇧E) — a gitignore-aware workspace tree with expand/collapse, filter, hidden-files toggle, devicons, M/A/D/R/U git badges, and keyboard navigation
File operations from the tree: new file, new folder, rename, and delete to Trash, plus open / reveal / copy path actions
Files page with a tab strip and an editor for the active workspace: syntax-highlighted editable buffers, Markdown Edit/Preview, images, debounced autosave (and ⌘S) with dirty/saving state, and honest read-only guards for binary, oversized, truncated, and non-UTF-8 files

Terminal

Integrated terminal (⌘J) — a real login shell in a resizable bottom panel, built on alacritty_terminal for PTY and VT/ANSI emulation and rendered natively by GPUI: scrollback, click-drag selection (⌘C/⌘V), bracketed paste, a blinking cursor, a per-theme ANSI palette, and restart; the shell follows the active workspace
Terminal tabs — ⌘T opens another shell in the current workspace, ⌘W closes the active one (the panel closes with its last tab), and ⌘⇧] / ⌘⇧[ (Ctrl+Shift+] / Ctrl+Shift+[) step between tabs
The tab chords are scoped to the terminal, so Ctrl+Tab still reaches the shell. On Windows and Linux, where Ctrl+T and Ctrl+W belong to the shell, the tab chords are Ctrl+Shift+T / Ctrl+Shift+W
A background tab keeps its PTY alive, so a build left running in one tab keeps running while you work in another, and switching sessions no longer kills the shells
Each tab carries its login shell’s mark (zsh, bash, fish), with the shell name and start directory on hover

Workbench

Usage, skills, plugins, models, providers, MCP, appearance, and agent/runtime settings, backed by pi's on-disk data
MCP — manage pi's MCP servers (global and per project) in Settings → MCP: add / edit / validate, a ${NAME} secret store, live status and tool lists from pi mcp list --json, and applying changes by respawning pi with the session preserved
Providers — pi's live catalog plus custom endpoints (models.json), with API-key or OAuth sign-in and usage meters
Plugins — install pi packages from npm, git, or a local path, global or per project; update checks and update/remove in place
Models — read from pi's own runtime, with a default session model and thinking level (Settings → Agent) applied to every new session; the choice lives in Orbit's own store and leaves pi's global settings alone
Auto session titles — a bundled pi extension names a session after its first turn, with a model picker and an on/off toggle in Settings → Agent
Report a bug — Settings → Report a bug takes an issue type (bug / feature / other) and the bug context, then Generate draft writes the title and description with the app's active model
It files the issue against the project with your build details attached (Orbit version, app ID, OS and architecture, install kind, pi CLI, and gh account): through the gh CLI when it is signed in, or as a prefilled GitHub new-issue page otherwise
Screenshots attach too. They upload with gh issue create --attach when gh is signed in, and otherwise the web form opens with the images saved to a temp folder to drag in
Privacy — Settings → Privacy archives or deletes idle pi sessions on a schedule you choose
It also lists Orbit's own scratch files in the orbit-pi folder inside the system temp directory (bug-report screenshots, update downloads, helper scripts), with Open folder and Clean up now. Older top-level orbit-* leftovers are included, and entries a live Orbit process still needs are kept
A separate AI scratch files group lists pi's own pi-* temp entries (shell output, codemode images, share/editor working files) and removes only those last used more than an hour ago
Appearance — Light / Dark / System, independent light and dark theme palettes, a background image, fonts, sizes, spacing density, and interface language (English, 简体中文, 日本語, 한국어, Español, Français, Deutsch, Português do Brasil, Русский, Italiano, or the system language)
System follows OS appearance changes live; new installations use System, while existing theme choices are preserved
With no image set, the new-task page carries a living ordered-dither field with the app monogram screened into it: it follows the palette, drifts slowly enough to breathe instead of strobe, and freezes under Reduce Motion
No telemetry: no analytics client, no identifier, and no queue (see PRIVACY.md)

Native

A command palette (⌘P / ⌘K) and a registry-driven shortcut layer: the keymap, palette chips, and the Settings → Shortcuts reference all read from one command table, with Tab focus traversal, context-aware keys (review tree, pickers, dialogs), custom macOS window chrome, native dialogs, and reduce-motion
Zed's design tokens (spacing and density, type, icon and button sizes, elevation, motion) in theme/tokens.rs, scaling with the UI font size and Spacing Density settings — settings, usage, the sidebar, transcript chrome, the palette, pickers, modals, the Explorer, the Git panel, and the terminal use them today, with the composer the last major surface
Open in — open the workspace in a detected editor or terminal right from the header, with each app's real icon
macOS window handling — closing the window keeps the session, its pi process, and any running stream alive; clicking the Dock icon reopens that same session, and a run that settles with no window open still posts its notification
A first-run dependency check for pi, node, and git that reports anything missing with its install command
Signed releases: macOS .dmg (signed + notarized, universal) and .tar.gz, Windows .exe / .zip, Linux .deb / .tar.gz, with signed in-app updates on every platform

Structure

┌───────────────────────────────────────────┐
│  Orbit (Rust) — GPUI, Metal-rendered UI   │
│  crates/orbit-pi                          │
│  window, transcript, markdown, workbench  │
└──────────────┬────────────────────────────┘
               │ newline-delimited JSON RPC over stdio
┌──────────────▼────────────────────────────┐
│  pi CLI (child process, per open session) │
│  pi --mode rpc — sessions, models, tools  │
└──────────────┬────────────────────────────┘
               │
┌──────────────▼────────────────────────────┐
│  ~/.pi/agent/ — sessions, config, usage   │
│  (same data the pi CLI uses)              │
└───────────────────────────────────────────┘

Orbit spawns the pi CLI as a child process per open session and speaks its RPC protocol: JSON requests on stdin, JSON-line events on stdout (text/thinking deltas, tool calls, question dialogs, settle signals). Everything user-facing is painted by GPUI on Metal — no DOM, no CSS, no browser engine. The agent runtime stays pi itself, so the model catalog, thinking levels, and persistence remain pi's own.

Project layout

crates/orbit-pi/      The GPUI app — window, transcript, markdown, workbench
crates/orbit-rpc/     pi CLI RPC client (process lifecycle + JSONL protocol)
contrib/              Bundled pi extensions (access guard, auth/quota bridges)
scripts/make-dmg.sh   Build a signed .app + DMG (arm64 / universal)
assets/icons/         App icon (logo-icon.png source, icon.icns, icon.png)
marketing/            Next.js landing page
PRODUCT.md            Product definition, capabilities, constraints
INTENT.md             Architecture decisions + phase plan
AGENT.md              Conventions for agents and humans working on this repo
PRIVACY.md            What Orbit does and does not send

Roadmap

Orbit is a workbench, not just a chat window. The confirmed direction lives in PRODUCT.md, architecture decisions in INTENT.md, and shipped work in CHANGELOG.md. Every unchecked item below is open for a pull request — read CONTRIBUTING.md and claim the linked issue before starting.

Planned features

Feature	Area	Description	Status	Tracking
Workflow modes	Composer	Start a session scoped to Plan Mode, Build Mode, or Ask Mode instead of one undifferentiated chat.	Shipped	—
Follow-up on settle	Transcript	Show a queued follow-up inline once a run ends, not only in the compose queue.	Planned	—
Suggested follow-ups	Transcript	Propose 2–3 context-grounded next prompts as composer inserts after a run settles.	Proposed	#10
GitHub client	Workbench	Browse and manage remote commits, graph, issues, and pull requests in-app.	In progress — Issues and Pull requests ship with comments, reviews, merges, and branch checkouts; a remote-commits view remains open (#8 closed for the issues/PRs half)	—
Pi extension support	Workbench	First-class list / install / enable / configure / debug of pi extensions, including community ones.	In progress — Plugins installs, updates, and removes packages; a dedicated extensions surface with enable/configure/debug is still open	#7
Global default model	Models	Pin pi's global default model and thinking effort from within Orbit.	Shipped — Settings → Agent sets the model and thinking level every new session starts on (Orbit's own store; pi's global settings are untouched)	#9
Voice dictation	Composer	Dictate prompts into the composer.	Planned	—
Diff review and terminal	Workbench	Inline diff review and an integrated terminal.	Shipped — Review pane with per-turn checkpoints and view controls, plus a login-shell terminal (⌘J)	—
Terminal tabs	Terminal	Run several shells in the bottom panel without losing the ones in the background.	Shipped — ⌘T / ⌘W / ⌘⇧] / ⌘⇧[, each tab holding its own PTY	—
Git worktrees	Workbench	List, create, open, move, lock, repair, and prune worktrees, and work in one as the active workspace.	Shipped — Worktrees page, a Work in chip in the status bar, and an optional per-repository setup script	—
Session retention	Workbench	Keep pi's session store from growing without bound.	Shipped — Settings → Privacy archives or deletes idle sessions on a schedule, alongside Orbit and pi scratch-file cleanup	—
Parallel sessions	Sessions	Run multiple agents / sessions side by side.	Planned	—
Explorer gaps	Explorer	Quick-open, sticky scroll, and directory folding in the file tree.	Planned — expand/collapse, filter, hidden toggle, and git badges ship today	—
Conversation fork/rewind	Sessions	Branch and rewind a conversation (clone ships today).	Planned	—
Scroll-perf measurement	Performance	On-device measurement of transcript scroll performance.	Planned	—
Zed token migration	Design	Move the remaining surfaces (settings, pickers, command palette, modals, transcript chrome, sidebar rows) onto the Zed design tokens.	In progress — settings, usage, sidebar, transcript chrome, palette, pickers, modals, Explorer, Git panel, and terminal are on the tokens; the composer is the last major surface	—

Contributor checklist

Workflow modes — Plan Mode / Build Mode / Ask Mode
Follow-up on settle — show a queued follow-up inline when a run ends
Suggested follow-ups — context-grounded next prompts (#10)
GitHub client — remote commits view (issues and PRs ship today)
Pi extension support — a dedicated extensions surface; Plugins manages packages today (#7)
Global default model — set the default model and thinking level for new sessions (#9)
Voice dictation — dictate prompts into the composer
Diff review and terminal — inline review plus an integrated terminal
Terminal tabs — several shells in one panel, background PTYs kept alive
Git worktrees — open a worktree as the active workspace
Session retention — archive or delete idle sessions on a schedule
Parallel sessions — multiple agents / sessions at once
Explorer gaps — quick-open, sticky scroll, directory folding
Conversation fork/rewind — branch and rewind a session
Scroll-perf measurement — on-device transcript scroll benchmark

Credits

Orbit leans on a lot of other people's work. The full license texts ship in NOTICE and beside each asset in the repo.

The agent

pi by earendil-works. Orbit ships no agent of its own: the CLI is a separate program, installed separately, and the model catalog, thinking levels, tools, and session store are all pi's.

Framework and libraries

GPUI by Zed Industries (Apache-2.0): the GPU UI framework Orbit is built on, and where the spacing, type, elevation, and motion tokens in theme/tokens.rs come from.
Waku by egoist (MIT): the review diff, turn checkpoints, syntax highlighting, and localization patterns in crates/orbit-pi follow its approach.
alacritty_terminal (Apache-2.0): the terminal's PTY, grid, and VT/ANSI parsing.
rust-i18n (MIT): the lookup behind the app's ten locales.

Icons

HugeIcons (MIT): the interface icon set.
Simple Icons (CC0-1.0): the zsh, bash, and fish marks on terminal tabs.
Nerd Fonts Symbols Only (MIT, Ryan L McIntyre) and the devicons crate (Apache-2.0): the file-type glyphs in the Explorer, composer attachments, and tool rows.

Fonts

Every family in crates/orbit-pi/assets/fonts/bundled/ ships under the SIL Open Font License 1.1: Anonymous Pro, Atkinson Hyperlegible, Cascadia Code, Commit Mono, DM Mono, DM Sans, Fira Code, Fixel Text, Geist, Geist Mono, IBM Plex Mono, Inconsolata, Inter, Iosevka, JetBrains Mono, Manrope, Martian Mono, Noto Sans, Noto Sans Mono, Roboto, Roboto Mono, Source Code Pro, Source Sans 3, and Space Mono. IBM Plex Sans and Lilex come from Zed's font set, also OFL 1.1.

Marketing site

Built with Next.js, React, Tailwind CSS, Base UI, HugeIcons for React, and shadcn/ui patterns. Sora and Geist Mono are served through next/font. The Apple mark in the download buttons follows gilbarbara/logos (CC0), and the Tux mark comes from tandpfun/skill-icons (MIT).

People

Rajeshwar Kashyap (@imrj05), maintainer
Dumitru Moloșnic, for transcript scrolling and table fixes, per-workspace "Open in" preferences, and the configurable Enter behavior (#11, #17, #33)
Bougie (@bougieL), for reopening the window from the macOS Dock (#63)
Everyone who filed an issue, opened a pull request, or sent a report through Settings → Report a bug

Something missing from this list is a bug. Open an issue and it gets fixed.

Setup, checks, and commit conventions live in CONTRIBUTING.md. Orbit is licensed under Apache-2.0; report vulnerabilities per SECURITY.md. Data handling is documented in PRIVACY.md.
