⚡ YOUPI PG V2

The Sovereign, Self-Hosted UPI Payment Gateway for Independent Merchants

0% Gateway Fees • Direct-to-Bank Settlement • WhatsApp Pre-Checkout OTP • Bank SMS & Gmail Observers

Live Demos • Why YOUPI? • Architecture • Superpowers • Quickstart • Merchant Integration • Banking Observers • Port Topology • Docs

🎬 Live Product Demos

See YOUPI PG V2 live in action across Desktop and Mobile checkout flows:

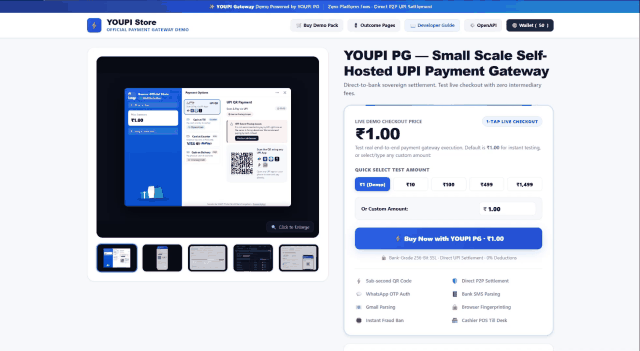

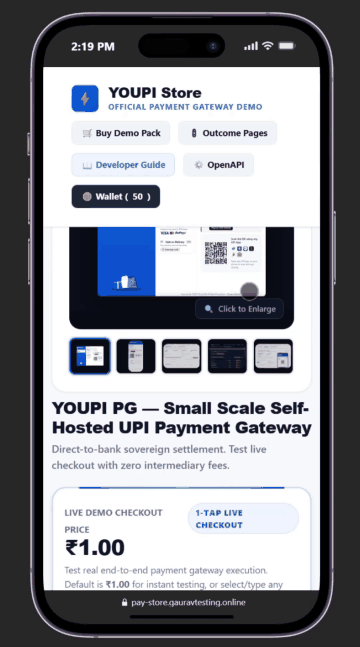

🖥️ Desktop Modal Flow	📱 Mobile Drawer & App Switcher
_{Full end-to-end checkout: One-script modal, WhatsApp OTP, dynamic vector QR & bank observation.}	_{Ultra-responsive bottom drawer with 1-tap deep-link intent for GPay, PhonePe, Paytm & CRED.}
• Zero-JS One-Script Trigger: Auto-binds to `[data-youpi-pay]` • WhatsApp Pre-Checkout OTP: Real-time 6-digit phone verification • Dynamic Vector SVG QR: Pure vector QR code with dual timers • Automated Observer Credit: Instant credit via bank SMS/Gmail	• Responsive Bottom Drawer: Native app-feel mobile UI • Direct UPI App Deep-Linking: GPay, PhonePe, Paytm, CRED • Real-Time Payment Polling: Instant status reflection • Counter Desk Modalities: Configurable Cash & Card fallback

High-Definition 120FPS Raw Recordings: assets/Desktop.mp4 • assets/Mobile.mp4

💡 Stop Paying 2–3% + 18% GST to Payment Aggregators

Traditional payment gateways (Razorpay, Cashfree, PayU, Stripe) lock your revenue into high fees, multi-day settlement delays, and sudden compliance freezes:

Comparison Metric	Traditional Aggregators (Razorpay / Cashfree)	⚡ YOUPI PG (Self-Hosted Sovereign)
Transaction Fee	2.0% – 3.0% + 18% GST per transaction	0.0% (Zero Fees Forever)
Settlement Speed	T+2 to T+3 Business Days (Holdbacks)	Instant (Direct into your Bank Account)
Account Freeze Risk	High (Unilateral freezes at aggregator discretion)	ZERO (You control your own VPA & infrastructure)
Customer Authentication	SMS OTP (Costly SMS gateway bills, phone spoofing)	WhatsApp OTP (Zero spoofing, verified mobile)
Payment Verification	Aggregator proprietary webhooks	Bank SMS & Gmail Alerts parsed in real time
Queue & Mismatch Prevention	Aggregator pooled virtual accounts	Invariant Single-Slot FIFO UPI Queue
Branding Control	"Secured by Razorpay" badges mandatory	100% White-Label (Your brand, your domain, zero mentions)
Offline Retail Till Desk	Expensive add-ons / dedicated POS hardware	Built-in POS Cash & Card at Till Billing Mode
Deployment Simplicity	Proprietary SaaS lock-in	Native Node.js host process (Zero Docker mandatory)

🏗️ Architecture at a Glance

YOUPI PG converts your standard Indian personal or business UPI receiving accounts into an automated, zero-fee payment gateway by coupling pure vector SVG QR codes with an automated multi-channel banking observation mesh.

flowchart LR
    subgraph Storefront["Merchant Storefront"]
        Buyer[Buyer Browser]
        Cart[Checkout Button]
    end

    subgraph Gateway["YOUPI Gateway Instance"]
        AuthGate[WhatsApp Berry Auth<br/>6-Digit OTP]
        Queue[Single-Slot FIFO Queue<br/>Deterministic Arbiter]
        VectorQR[ISO Vector QR Engine<br/>UPI URI]
        DualTimer[Dual Timers<br/>5:00 Pay • 0:30 Verify]
    end

    subgraph BankingMesh["Sovereign Banking Observers"]
        AndroidNode[Native Android APK<br/>SMS & Push Notifications]
        GmailNode[Gmail Ingestion<br/>OAuth2 & CDP Web]
        SMSNode[Google Messages<br/>Headless CDP]
    end

    subgraph Settlement["Direct Bank Settlement"]
        MerchantBank[(Merchant Bank Account<br/>Direct P2P UPI Transfer)]
    end

    Buyer -->|Clicks Checkout| Cart
    Cart -->|youpi.js Embed| AuthGate
    AuthGate -->|Verified| Queue
    Queue -->|Active Slot| VectorQR
    VectorQR -->|Displays Dynamic QR| Buyer

    Buyer -->|Scans & Pays with any UPI App<br/>GPay / PhonePe / Paytm / CRED| MerchantBank
    MerchantBank -->|Pushes Cellular SMS & Alerts| AndroidNode
    MerchantBank -->|Pushes Credit Alert Email| GmailNode

    AndroidNode -->|HMAC-SHA256 Signed Alert| DualTimer
    GmailNode -->|Normalized Amount & UTR| DualTimer

    DualTimer -->|Confirmed SUCCESS| Buyer
    DualTimer -->|Authoritative Server Webhook| Cart

🚀 Key Features & Superpowers

1. ⚡ 0% Transaction Fees Forever

Every rupee paid goes straight from your customer's bank account to your bank account via standard NPCI UPI rails. No intermediaries hold your money.

2. 💬 WhatsApp Pre-Checkout Authentication (Berry Protocol)

No more fake orders, bot spam, or fraudulent phone numbers. Before a customer can enter the checkout queue, the gateway delivers a cryptographically random 6-digit OTP directly to their WhatsApp app using the embedded Baileys/Berry Protocol socket. Verified customer profiles are remembered in browser localStorage.

3. 🔒 Deterministic Single-Slot FIFO Queue Engine

Because standard UPI alerts do not carry arbitrary merchant metadata, multiple concurrent transactions with identical amounts could create attribution confusion. YOUPI PG solves this with a mathematical invariant:

Only ONE customer can pay on a VPA at a time.
Other buyers wait in a database-backed FIFO queue with live position streaming.
Guarantees 100% exact payment matching with zero payment mismatch errors!

4. 📱 Native Android Observer APK (`com.youpi.observer`)

A lightweight, battery-optimized Android foreground service that captures:

Cellular banking SMS (android.provider.Telephony.SMS_RECEIVED).
Real-time bank push notifications via NotificationListenerService.
Enrolls securely via ephemeral QR code and signs all observation payloads with HMAC-SHA256.

5. 📧 Automated Gmail & Google Messages Ingestion

Dual backup observation channels:

Gmail Observer (Port 6003): Polls Google Cloud OAuth2 API or automated headless Chrome CDP inbox monitoring.
SMS Observer (Port 6002): Connects to Google Messages for Web via Chrome DevTools Protocol (CDP).

6. 🏪 Dual Operational Modalities

Online Selling Mode: UPI Vector QR + Cash on Delivery (COD) with customer pre-purchase verification and decoupled address lifecycle.
Offline Store Counter Mode: Designed for physical retail stores. Supports UPI QR, Cash at Till (CASH_COUNTER), and Card at POS Terminal (CARD_COUNTER) with an interactive real-time cashier till dock and instant SSE customer approval.

7. 🎨 100% White-Label Customizer

Rebrand the checkout portal completely through the Merchant Admin Panel:

Custom app name, logo URL, and browser favicon.
Tailored color palettes, custom gradients, and trust badges.
Custom domain binding via Cloudflare Tunnels (pay.yourbrand.com).
Complete removal of any "Powered by YouPI PG" attribution.

8. 🚦 5 Standardized Merchant Outcome Pages

Never leave customers hanging with blank screens or 404 errors:

/order-success — Payment verified by observers, order marked paid and provisioned.
/order-failed — Verification timed out, reassuring customer no money was lost.
/order-suspicious — Flagged by fraud heuristics, held for manual compliance review.
/order-expired — 5-minute session elapsed, slot released for queued customers.
/order-cancelled — Customer cancelled checkout session.

⚡ Quickstart in 60 Seconds

Prerequisites

Node.js >= 20.0.0 LTS (node -v)
Standard Linux or Windows host
No Docker or external database services required!

1. Clone & Install Dependencies

Standard npm install works out-of-the-box across all packages and apps without any protocol issues:

git clone https://github.com/gxurav1710/YouPI-PG.git youpi-pg
cd youpi-pg
npm install

2. Configure Environment

cp .env.example .env

(The default .env is pre-configured for localhost out of the box).

3. Zero-Config Launch (Auto-Initialized SQLite)

On first launch, YOUPI PG automatically provisions data/youpi_pg.sqlite, creates the directory if missing, and executes idempotent migrations and baseline seeds. No manual database setup is required:

npm run dev
# or
npm start

That's it! Your entire gateway cluster will spin up:

🎛️ Control Center Supervisor: http://localhost:8090
📊 Merchant Admin Panel: http://localhost:6001
🛒 YOUPI Showcase Demo Store: http://localhost:5000
⚡ Payment REST API: http://localhost:6100
💳 Customer Checkout Portal: http://localhost:7000

4. Run the Full Regression Test Suite

Verify all 31 test suites across packages, apps, and chaos harnesses:

npm test

============================================================
🧪 YOUPI PG V2 — FULL REGRESSION TEST RUNNER
Running 31 curated test suites...
============================================================
[1/31] Testing packages/common/src/__tests__/common.test.js... ✅ PASS (0.22s)
...
[31/31] Testing scripts/production-infrastructure.test.js... ✅ PASS (0.17s)
============================================================
🎉 ALL 31 TEST SUITES PASSED CLEANLY (Total: 17.68s)
============================================================

📦 Universal Merchant Integration

Integrating YOUPI PG into your website, web app, or e-commerce store takes less than 5 minutes.

Step 1: Add the Universal Script to your `<head>`

<!-- Official YOUPI PG Universal Integration Script -->
<script src="https://pay.yourdomain.com/youpi.js"
        data-youpi-key="YOUR_MERCHANT_PUBLIC_KEY"
        data-currency="INR">
</script>

Step 2: Declarative Button (Zero JavaScript Required!)

Add data-youpi-pay attributes to any existing HTML button:

<button data-youpi-pay
        data-order-id="ORDER-1001"
        data-amount="499.00"
        data-currency="INR">
  ⚡ Buy Now with YOUPI PG
</button>

The script automatically intercepts the click, opens a centered desktop modal (or mobile slide-up bottom sheet), and launches the checkout session!

Step 3: Programmatic API (For React, Vue, Next.js, Nuxt)

window.Youpi.pay({
  order_id: 'ORDER-1001',
  amount: 499.00,
  currency: 'INR',
  name: 'Acme Digital Store',
  description: 'Pro Subscription Top-Up',
  handler: function(response) {
    // response: { status: 'SUCCESS', order_id, amount_received, utr }
    console.log(`Payment confirmed! UTR: ${response.utr}`);
    window.location.href = `/order-success?order_id=${response.order_id}&utr=${response.utr}`;
  },
  onClose: function() {
    console.log('Customer closed payment modal');
  }
});

Step 4: Authoritative Server-to-Server Webhook Verification

⚠️ CRITICAL SECURITY RULE: Never fulfill orders based solely on frontend browser events. Always verify the backend HMAC-SHA256 signature! Consumers MUST compute the HMAC over the raw, unparsed request bytes before any JSON parsing.

Webhook Contract:

Header: X-Gateway-Signature: sha256=<64_char_hex_hash>
Additional Headers: X-Gateway-Event: SUCCESS, X-Gateway-Delivery-Id: <uuid>, X-Gateway-Timestamp: <timestamp_ms>
Payload Fields:
- event: 'SUCCESS'
- orderId: Merchant order ID (string)
- amount: Formatted amount in Rupees, e.g. '499.00'
- amountPaise: Integer amount in Paise, e.g. 49900
- utr: 12-digit bank reference number
- paymentId: Unique gateway payment session UUID

Polyglot Webhook Verification Snippets:

1. Node.js (Express)

import crypto from 'node:crypto';

app.post('/api/youpi-webhook', express.raw({ type: 'application/json' }), (req, res) => {
  const signature = req.headers['x-gateway-signature'] || '';
  const secret = process.env.YOUPI_WEBHOOK_SECRET;
  const expected = 'sha256=' + crypto.createHmac('sha256', secret).update(req.body).digest('hex');

  if (signature.length !== expected.length ||
      !crypto.timingSafeEqual(Buffer.from(signature), Buffer.from(expected))) {
    return res.status(401).json({ error: 'Invalid webhook signature' });
  }

  const payload = JSON.parse(req.body.toString('utf8'));
  if (payload.event === 'SUCCESS') {
    // Fulfill order: payload.orderId, payload.utr, payload.amount, payload.amountPaise
  }
  res.status(200).json({ received: true });
});

2. Python (FastAPI)

import hmac, hashlib, json
from fastapi import FastAPI, Request, HTTPException

app = FastAPI()

@app.post("/api/youpi-webhook")
async def youpi_webhook(request: Request):
    raw_body = await request.body()
    signature = request.headers.get("X-Gateway-Signature", "")
    secret = request.app.state.webhook_secret.encode("utf-8")

    expected = "sha256=" + hmac.new(secret, raw_body, hashlib.sha256).hexdigest()
    if not hmac.compare_digest(signature, expected):
        raise HTTPException(status_code=401, detail="Invalid webhook signature")

    payload = json.loads(raw_body.decode("utf-8"))
    if payload.get("event") == "SUCCESS":
        # Fulfill order: payload["orderId"], payload["utr"], payload["amount"]
        pass
    return {"received": True}

3. PHP

<?php
$rawPayload = file_get_contents('php://input');
$signature = $_SERVER['HTTP_X_GATEWAY_SIGNATURE'] ?? '';
$secret = getenv('YOUPI_WEBHOOK_SECRET');

$expected = 'sha256=' . hash_hmac('sha256', $rawPayload, $secret);

if (!hash_equals($expected, $signature)) {
    http_response_code(401);
    exit(json_encode(['error' => 'Invalid webhook signature']));
}

$payload = json_decode($rawPayload, true);
if (($payload['event'] ?? '') === 'SUCCESS') {
    // Fulfill order: $payload['orderId'], $payload['utr'], $payload['amount']
}

http_response_code(200);
echo json_encode(['received' => true]);
?>

4. Go (`net/http`)

package main

import (
	"crypto/hmac"
	"crypto/sha256"
	"encoding/hex"
	"encoding/json"
	"io"
	"net/http"
	"os"
)

func youpiWebhookHandler(w http.ResponseWriter, r *http.Request) {
	rawBody, err := io.ReadAll(r.Body)
	if err != nil {
		http.Error(w, "Cannot read body", http.StatusBadRequest)
		return
	}
	defer r.Body.Close()

	signature := r.Header.Get("X-Gateway-Signature")
	secret := []byte(os.Getenv("YOUPI_WEBHOOK_SECRET"))

	mac := hmac.New(sha256.New, secret)
	mac.Write(rawBody)
	expected := "sha256=" + hex.EncodeToString(mac.Sum(nil))

	if !hmac.Equal([]byte(signature), []byte(expected)) {
		http.Error(w, "Invalid webhook signature", http.StatusUnauthorized)
		return
	}

	var payload struct {
		Event       string `json:"event"`
		OrderId     string `json:"orderId"`
		UTR         string `json:"utr"`
		Amount      string `json:"amount"`
		AmountPaise int64  `json:"amountPaise"`
	}
	if err := json.Unmarshal(rawBody, &payload); err == nil && payload.Event == "SUCCESS" {
		// Fulfill order: payload.OrderId, payload.UTR, payload.Amount
	}

	w.WriteHeader(http.StatusOK)
	w.Write([]byte(`{"received":true}`))
}

🔭 Tri-Channel Observation Mesh

YOUPI PG confirms payments without expensive commercial banking APIs using a triple-layer observation pipeline:

              CUSTOMER SCANS & PAYS VIA UPI
                           │
                           ▼
                 RECEIVING BANK ACCOUNT
                           │
        ┌──────────────────┼──────────────────┐
        ▼                  ▼                  ▼
┌───────────────┐  ┌───────────────┐  ┌───────────────┐
│  CELLULAR SMS │  │   BANK PUSH   │  │  GMAIL CREDIT │
│  ALERT ON SIM │  │ NOTIFICATION  │  │  ALERT EMAIL  │
└───────┬───────┘  └───────┬───────┘  └───────┬───────┘
        │                  │                  │
        ▼                  ▼                  │
┌──────────────────────────────────┐          │
│    NATIVE ANDROID OBSERVER APK   │          │
│  com.youpi.observer (Foreground) │          │
│     HMAC-SHA256 Signed Payload   │          │
└─────────────────┬────────────────┘          │
                  │                           ▼
                  │                 ┌───────────────────┐
                  │                 │   GMAIL OBSERVER  │
                  │                 │ Google Cloud API  │
                  │                 └─────────┬─────────┘
                  │                           │
                  └─────────────┬─────────────┘
                                ▼
                   PAYMENT CORE REST ENGINE
               Exact Amount & UTR Normalization
                                │
                                ▼
                       SUCCESS CONFIRMED

Android Observer App: Install apps/android-observer-app/youpi-sms-gateway.apk on any secondary Android smartphone with the receiving bank SIM. Scan the pairing QR code in Merchant Admin to establish an encrypted HMAC link.
Gmail Observer: Connect your bank-registered Google account using standard OAuth2 credentials.
Google Messages Web Observer: Pairs via headless Chrome DevTools Protocol to observe cellular SMS through Google Messages Web.

🌐 Port Topology & Microservices Map

Service	Port	Directory	Entrypoint	Responsibility
Payment API	`6100`	`apps/payment-api`	`src/index.js`	Core REST API, state machine, DB transactions & SSE stream
Checkout Portal	`7000`	`apps/checkout-portal`	`src/index.js`	Customer iframe checkout, dynamic vector QR, SDK bundle
Merchant Admin	`6001`	`apps/merchant-admin`	`src/index.js`	Operations panel, till billing desk, branding customizer
Showcase Store	`5000`	`apps/coin-wallet-store`	`src/index.js`	Reference enterprise merchant PDP, 5 outcome demonstrations
Control Center	`8090`	`apps/control-center`	`src/index.js`	Process supervisor for starting, stopping, and logging all services
SMS Observer	`6002`	`apps/sms-observer`	`src/index.js`	Google Messages Web automation via Chrome CDP
Gmail Observer	`6003`	`apps/gmail-observer`	`src/index.js`	Gmail Web CDP automation & Google OAuth2 poller
Android APK	N/A	`apps/android-observer-app`	Android OS	Intercepts cellular banking SMS and notifications

🔒 Security & Reliability Architecture

64-Bit Integer Minor Units (Paise): Financial values are strictly represented as integers (49900 paise = ₹499.00). Floating-point rounding drift is mathematically impossible.
Server-Authoritative Timers: Timers are calculated strictly from SQLite state timestamps. Client-side browser tampering cannot manipulate countdowns.
Anti-Replay Observation Protection: Android observer payloads require HMAC signatures with timestamp drift verification ($< 60$ seconds).
Hardware & Browser Fingerprinting: Buyers are fingerprinted on arrival. Fraudulent actors and abusive chargeback profiles are permanently banned instantly.
Write-Ahead Logging (WAL): SQLite operates with PRAGMA journal_mode = WAL; PRAGMA foreign_keys = ON;, ensuring crash safety and concurrent read performance.

📚 Documentation Hub

Deep-dive engineering manuals and operational runbooks are available in the /docs directory:

Document	Description
📘 `ARCHITECTURE.md`	Canonical System Architecture & Engineering Blueprint
🚀 `docs/INSTALLATION.md`	Host installation, prerequisites & environment setup
⚙️ `docs/CONFIGURATION.md`	Environment configuration variables & secret management
📱 `docs/ANDROID_MOBILE_APP.md`	Native Android Kotlin Observer APK guide & permissions
🔭 `docs/OBSERVERS_SETUP.md`	Complete setup for Gmail, Google Messages & Android
💳 `docs/MERCHANT_INTEGRATION.md`	Full developer integration guide, SDK methods & webhooks
🎨 `docs/WHITE_LABEL.md`	White-label branding customizer, domains & Cloudflare
🛠️ `docs/OPERATIONS_TROUBLESHOOTING.md`	Production operations, logs, diagnostics & troubleshooting
🌐 `openapi.yaml`	Official OpenAPI 3.0 REST API specification

⚖️ License

Distributed under commercial and sovereign licensing for independent merchant deployments. See LICENSE for full terms.

Built for Financial Sovereignty in India 🇮🇳

Take back control of your payments. Zero middleman fees. Direct settlement.

⭐ Star this repository if you believe in open, zero-fee payment infrastructure!

Searching Database…

913 ·GitHub

YouPI-PG

A self-hosted UPI & COD payment gateway with zero per-transaction platform fees, universal JavaScript checkout integration, dynamic QR payments, WhatsApp OTP authentication, and automated payment verification.

Creator: gxurav1710
Size: 5.9 MB
Stars: 913
Updated: CommitOct 15
Age: 28d
Commits · 90 Days
