NX2Apple
Play your own Nintendo Switch games on an iPhone or iPad. Point a macOS app at your own game dumps and it runs the whole pipeline: unpack, rewrite the game's code for Apple silicon, translate its shaders to Metal, and pack a slim IPA plus a sharded RomFS archive that a phone can actually install — then tells you the three steps to get it onto the device.
The project is based on nxnative — the NSO rewriter, the Horizon host, the NVN-on-Metal layer and the per-game profiles are upstream work, and this fork follows upstream automatically. What it adds:
- A GUI app for everyone. NS Port Builder walks a first-time user through the whole build: four inputs picked separately (or one folder for all), device dependencies detected and installed with one click, progress from the build's own stages, and an install guide with Reveal-in-Finder buttons at the end. English by default; Chinese on Chinese devices.
- A RomFS archive. Tears of the Kingdom's 304,243 files become 127 shards — the difference
between an iOS install that fails with
PackageExtractionFailedand one that works (details below). - Interrupted builds resume. Extraction, DLC, module rewrite and shader compilation are kept and reused: a failed or stopped build continues where it left off, and a rebuild after a tweak reuses everything unchanged (upstream's pipeline; the app drives it with its own build folder).
- Follows upstream automatically. A daily GitHub Actions job re-applies the fork's features onto upstream's tree, verifies the result (script parse, archive reader test, a macOS host build) and pushes — or opens an issue with the log when a patch no longer fits.
- 48 game profiles with the required update version listed per game. Two are verified end to end on this fork; twenty-odd are reported playable on an iPhone upstream (table below).
English | 简体中文 · Formerly nxnative-romfs-archive (the old links redirect
here).
The problem
A RomFS like Tears of the Kingdom's is 304,243 files / 15.9 GiB. Two things break:
- The IPA does not install. A 16.6 GB package with 372,660 entries fails on iOS with
PackageExtractionFailed (Could not extract archive). The install daemon's extractor gives up — one directory holds 75,941 files and the ZIP64 central directory starts at 17.8 GB. - Copying the tree to the phone takes hours. The Files app and Finder do one round trip per file. 300,000 small files also produce roughly 1 GB of filesystem block overhead.
Packing the tree into ~100 shard files solves both: the package stays small, and the game files move to the phone as one folder of large files.
The fix
A ROMFSARC archive: one index file plus N shard files.
romfs.idx 28 MB header, name pool, file table, directory table
romfs.00 ... .125 126 shards, 200 MiB each, source bytes verbatim
Measured on Tears of the Kingdom (v1.0.0 + 1.4.3):
| Plain RomFS | ROMFSARC | |
|---|---|---|
| Files | 304,243 | 127 |
| Largest directory | 75,941 entries | 126 shards, none over 200 MiB |
| IPA with the game inside | 16.6 GB (fails to install) | — |
| Slim IPA (the default, no RomFS inside) | — | 743 MB, installs |
| Copy to the phone | hours | one folder of 127 files |
Path lookup is a binary search over the sorted file table; a directory listing walks one contiguous
child range. The index is mmaped, shards are opened lazily, and reads go straight to pread on
the shard, so the page cache still works.

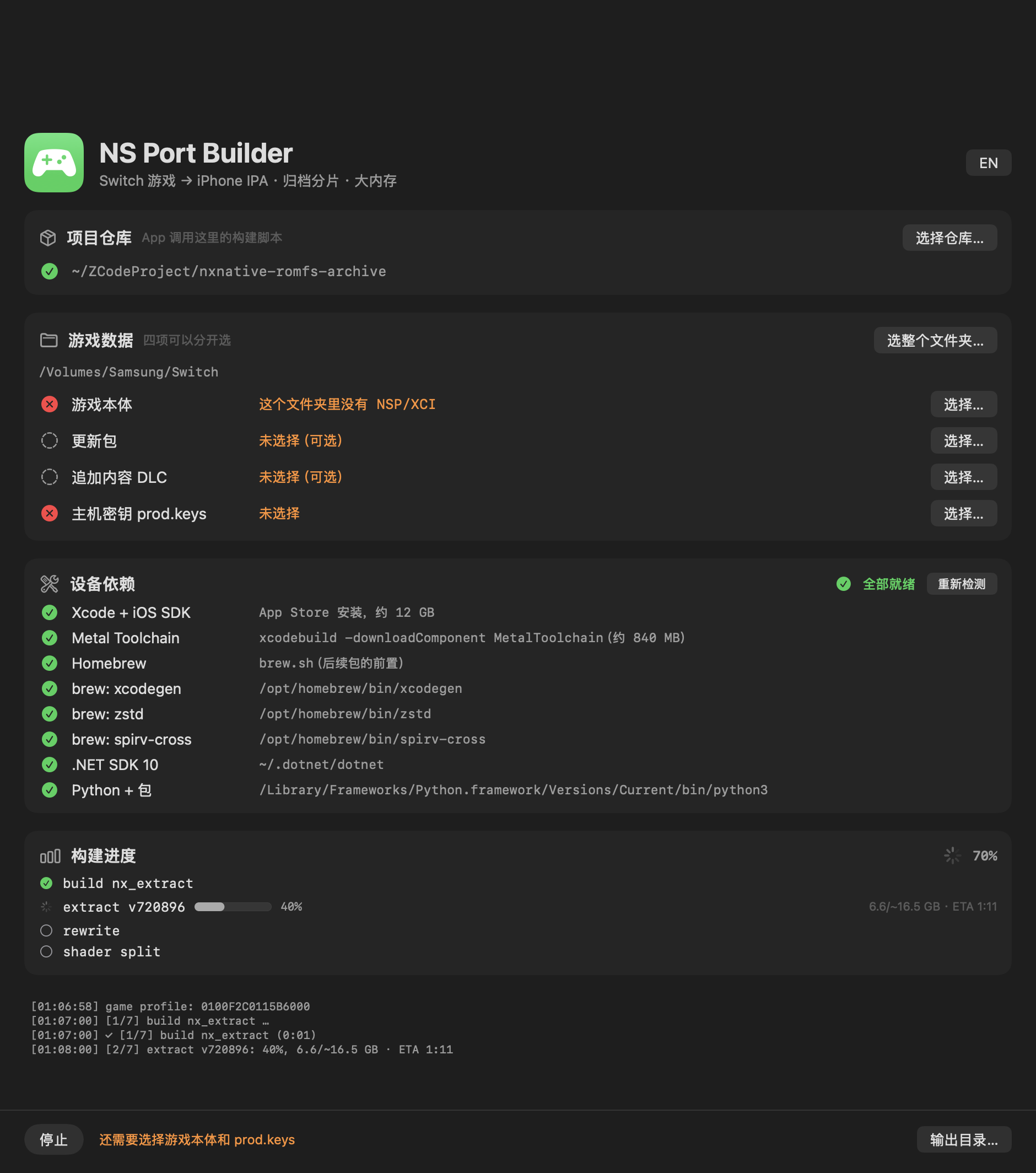

The GUI front end
frontend/ is a macOS app that does steps 2–5 below with a window instead of a terminal, for
people who would rather not read a build log: four inputs picked separately (base game, update,
DLC, prod.keys), a dependency panel that detects and installs what is missing, the script's real
stage list with live percentages, and the archive shards produced at the end.
界面截图（点开）
cd frontend && swift run # or double-click frontend/NS Port Builder.app
The interface is bilingual: it follows the device (Chinese for any Chinese variant, English for
everything else) and the 中文 / EN button in the title bar switches at any time.
It runs the same scripts the command line does, so everything below still applies; see frontend/README.md. The prebuilt app, and the release notes in English and Chinese (including which games are verified), are on the releases page and in docs/RELEASE_NOTES.md.
Staying current with upstream
A scheduled GitHub Actions workflow (.github/workflows/sync-upstream.yml, daily 21:30 UTC, also
runnable by hand) follows seedds/nxnative: it re-applies this
fork's features onto upstream's tree through scripts/sync_upstream.py, verifies the result
(Python 3.9 parse of every script, bash -n, the archive reader test, a macOS host build) and
pushes — or opens an issue with the log when a patch no longer fits, pushing nothing. The repo is a
fresh repository rather than a true fork, so GitHub's own "Sync fork" does not apply here; the last
synced upstream commit lives in .upstream-ref.
Using it
1. Build the app (as upstream)
The archive feature does not change the normal build. Follow upstream's README to install Xcode, Homebrew tools and the Python packages, then pack an IPA.
git clone https://github.com/<you>/NX2Apple.git
cd NX2Apple
brew install xcodegen zstd spirv-cross
brew install --cask dotnet-sdk
python3 -m pip install lz4 capstone fonttools backports.zstd
2. What you need on disk
Three things, none of which ship with the repository:
| What | Where it comes from | Used by |
|---|---|---|
prod.keys |
dumped from your own console (see below) | the extractor, to decrypt your game |
| The game's NSPs | dumped from your own cartridge or eShop purchases | the extractor |
| Xcode + iOS SDK | the App Store | the app build |
prod.keys is the console's key set — a text file of name = hex value lines (~230 entries:
master_key_xx, titlekek_xx, header_key, key_area_key_application_xx, …). Every Switch
homebrew tool reads this format. It is not tied to a specific game: one prod.keys decrypts
any of your games. The only requirement is that the file contains keys for the key generation
(firmware era) the game was packaged with — a current dump covers every retail game.
Where to put it is up to you; you pass the path with -k:
# any layout works, e.g.
~/keys/prod.keys
# or keep it beside the game's NSPs
~/Games/Hades2/prod.keys
python3 scripts/build_ipa_from_nsp.py ~/Games/Hades2 -k ~/keys/prod.keys
How keys are dumped is documented across the Switch homebrew community (Lockpick_RCM from a hacked console is the usual route); this repository does not cover that step and ships none of it. Two practical notes from real dumps:
- Malformed lines. Some dumpers emit lines whose hex value has the wrong length (33 bad
master_kek_source_*lines in one real dump), which makes the extraction tool refuse the whole file. Delete the offending lines and keep a backup of the original. - Updates. An update NSP's ticket may carry a newer key generation than the base game's. The
extractor reads the title key straight from the common ticket inside each NSP, so in practice
both decrypt fine as long as
prod.keysis reasonably current — verified here with a base game on generation 15 and its update on 16, using a keys file that only reached 15.
backports.zstd is needed for Tears of the Kingdom's zstd dictionaries; other games do not use it.
3. Pack the RomFS into an archive
python3 dm/tools/romfs_arc.py pack <RomFS dir> <output base> --shard-mib 200
<RomFS dir> is the directory nx_extract wrote (the one holding Pack/, Banc/, Sound/, …).
The tool writes <base>.idx and <base>.00, <base>.01, … Files are grouped by top-level
directory and cut so no shard passes --shard-mib, so one shard holds one kind of content.
Check the result before copying anything:
python3 dm/tools/romfs_arc.py verify <base> <RomFS dir> # byte-compares every file
python3 dm/tools/romfs_arc.py list <base> [path] # list one directory
4. Build the IPA
The main build script packs a slim IPA by default (no RomFS inside; the app reads the game
files from Documents/romfs), so step 1 already produced it. To re-pack just the package later:
GAME=<title id> W=<work dir> PATCHED=<patched dir> \
ROMFS=<RomFS dir> MSL_IOS=<shader dir> \
dm/ios/tools/build_ipa.sh <output.ipa>
--full-romfs (or DM_FULL_ROMFS=1) packs the RomFS into the package instead — upstream's
behaviour, only sensible for small games.
5. Copy the archive to the phone
Put the whole set in the app's Documents/romfs/, keeping the base name:
Documents/romfs/romfs.idx
Documents/romfs/romfs.00
...
Documents/romfs/romfs.125
The app looks for romfs.idx first (dm/ios/Sources/main.m, romfs_locate). A plain directory
tree is still accepted when there is no index, so nothing changes for existing games.
The index may sit at any of these places; the reader tries them in order:
<DM_ROMFS>.idx
<DM_ROMFS>/romfs.idx
<DM_ROMFS>/romfs/romfs.idx
Playing
Touch controls. Two layouts (tap the button at the top centre to switch): 2D (left stick, A/B/X/Y, shoulders, − / +) and 3D (adds a D-pad, a right stick and L3 / R3). With no controller connected, touches outside the controls go to the game's touch screen.
Physical controllers (GameController framework: Xbox, PlayStation, Switch Pro and MFi pads all work) hide the touch controls entirely while connected and bring them back when disconnected; meanwhile every touch goes to the game's touch screen. Buttons map by position, as on a Switch controller: bottom = B, right = A, left = Y, top = X, and the D-pad and right stick are kept.
Settings without rebuilding: Documents/env.txt, one KEY=VALUE per line. Common ones:
DM_LANG=zh-Hans # Chinese (en-US by default)
DM_FPS_TARGET=30 # cap the frame rate (saves battery; the profile's fps_target by default)
DM_OPMODE=0 # handheld mode: 720p render instead of the docked 1080p
Saves and logs are in the Files app under the app's name: save/ and log.txt. When something
goes wrong, send log.txt (the previous run is log.prev.txt). Short stutters the first time a new
scene appears are normal: the app compiles graphics for it once and remembers them.
Using it for another game
The archive format has nothing game-specific in it: the packer walks whatever directory you give it and the reader looks paths up in that tree. To switch games:
- Extract the new game's NSPs with
nx_extractas usual (upstream's script does this). - Pack that game's
RomFSwithromfs_arc.py. - Rebuild the IPA with the new
GAME=profile (the slim package is the default). - Copy the new archive into
Documents/romfs/.
Three things to watch for:
- The shard count must stay at or below 256. The reader keeps one fd slot per shard
(
MAX_SHARDSinromfs_arc.h). The packer now refuses to write an index above that and tells you which--shard-mibwould fit. Tears of the Kingdom needs 126 at 200 MiB; a game about twice its size would need 256 MiB shards. - DLC is not archived. Add-on content still goes into the package (
DmIOS.app/aoc/<index>/) and is mounted as a directory. Most DLC is small enough that this does not affect installation; if you hit the installer limit again, drop the DLC from the package and it stays unowned. zip_storeis per game. The profile lists extensions that are already compressed and should be stored rather than deflated (.zs,.bwav,.mc,.webm,.metallibfor Tears of the Kingdom). This only affects the package the shader libraries and tables go into, not the archive.
Games from upstream's tested list (4–6 GB) need roughly 20–30 shards at 200 MiB, well inside the limit, and their memory footprint is far below the per-app budget that stops Tears of the Kingdom.
What changed against upstream
Five files added, four modified. The fs layer keeps its normal path handling: when an archive is
open, host_path_ex hands out a synthetic path (@romfsarc:<guest path>) for entries on the
archive mount, and OpenFile / GetEntryType / OpenDirectory / the directory calls route those
to the archive. File handles for archive entries are tagged with bit 63 so they never collide with
real fds, and ReadFile clamps to the file size (a shard is a flat container, so an unclamped read
past the end would return the next file's bytes).
| File | Change |
|---|---|
dm/host/romfs_arc.h |
new — archive format and reader interface |
dm/host/romfs_arc.c |
new — mmap index, binary-search lookup, lazy shard fds |
dm/tools/romfs_arc.py |
new — pack / verify / list |
dm/host/tests/t_romfs_arc.c |
new — walks a whole archive, checks every file |
docs/ROMFS_ARCHIVE.md |
new — format and design notes |
dm/host/hle_fs.c |
mount and route archive-backed paths |
dm/host/Makefile |
build romfs_arc.c |
dm/ios/Sources/main.m |
romfs_locate accepts romfs.idx |
dm/ios/tools/build_ipa.sh |
slim by default (DM_FULL_ROMFS=1 = upstream full package) |
scripts/build_ipa_from_nsp.py |
--work-dir (build folder away from the NSPs); derives DOTNET_ROOT (a framework-dependent nx_extract will not start from a plain shell without it) |
frontend/ |
new — macOS GUI front end (see The GUI front end) |
The mount is recognised by its directory, not its name: titles differ (rom for most games,
content for Tears of the Kingdom).
Games
48 game profiles ship with this repository. A profile is what makes a build possible — the game's build IDs, memory layout, shader tables and per-game switches — and this fork adds the RomFS archive layer on top, so a large game can be installed at all.
The update column is the version the build actually checks: the update NSP's display version must match the profile's registered build (the base game's own version does not matter — the update layers over it). "无（v0）" = the base game alone is enough.
| Game | Title ID | Update required | Status |
|---|---|---|---|
| Super Mario Odyssey | 0100000000010000 |
1.4.1 (v393216) | Playable on an iPhone (upstream) |
| Ace Attorney Investigations Collection | 010005501E68C000 |
1.0.0.2 (v131072) | Profile present; not verified on a phone |
| Hollow Knight: Silksong | 010013C00E930000 |
1.0.30000 (v655360) | Profile present; not verified on a phone |
| Digimon Story Cyber Sleuth: Complete Edition | 010014E00DB56000 |
1.0.3 (v196608) | Profile present; not verified on a phone |
| Super Mario Bros. Wonder | 010015100B514000 |
1.2.1 (v327680) | Playable on an iPhone (upstream) |
| Mario Kart 8 Deluxe | 0100152000022000 |
4.0.0 (v1441792) | Playable on an iPhone (upstream) |
| Raging Loop | 010020400E1C2000 |
无（v0） | Profile present; not verified on a phone |
| ANIMAL WELL | 010020D01AD24000 |
1.0.10 (v655360) | Playable on an iPhone (upstream) |
| Super Mario 3D World + Bowser's Fury | 010028600EBDA000 |
1.2.2 (v262144) | Playable on an iPhone (upstream) |
| Hyrule Warriors: Age of Calamity | 01002B00111A2000 |
1.3.0 (v327680) | Playable on an iPhone (upstream) |
| Celeste | 01002B30028F6000 |
1.4.1.1 (v589824) | Profile present; not verified on a phone |
| The Great Ace Attorney Chronicles | 010036E00FB20000 |
无（v0） | Playable on an iPhone (upstream) |
| FINAL FANTASY TACTICS - The Ivalice Chronicles | 010038B015560000 |
1.4.0 (v393216) | Profile present; not verified on a phone |
| 13 Sentinels: Aegis Rim | 01003FC01670C000 |
1.10 (v65536) | Playable on an iPhone (upstream) |
| DARK SOULS: REMASTERED | 01004AB00A260000 |
1.0.3 (v196608) | Profile present; not verified on a phone |
| Monster Train 2 | 010051701FB46000 |
1.1.1 (v131072) | Playable on an iPhone (upstream) |
| OCTOPATH TRAVELER 0 | 01005270232F2000 |
1.0.5 (v327680) | Profile present; not verified on a phone |
| Hades | 0100535012974000 |
1.0.38233 (v589824) | Playable on an iPhone (upstream) |
| Fire Emblem: Three Houses | 010055D009F78000 |
1.2.0 (v327680) | Playable on an iPhone (upstream) |
| FINAL FANTASY RESONANCE | 0100606026F12000 |
1.0.1 (v65536) | Playable on an iPhone (upstream) |
| Big Brain Academy: Brain vs. Brain | 0100620012D6E000 |
1.2.0 (v131072) | Profile present; not verified on a phone |
| Unicorn Overlord | 010069401ADB8000 |
1.05 (v262144) | Profile present; not verified on a phone |
| The Legend of Zelda: Link's Awakening | 01006BB00C6F0000 |
1.1.0 (v131072) | Playable on an iPhone (upstream) |
| DRAGON QUEST XI S: Echoes of an Elusive Age – Definitive Edition | 01006C300E9F0000 |
1.0.4 (v262144) | Profile present; not verified on a phone |
| Animal Crossing: New Horizons | 01006F8002326000 |
3.0.3 (v2228224) | Profile present; not verified on a phone |
| AI: THE SOMNIUM FILES - nirvanA Initiative | 0100713016CCC000 |
1.0.2 (v131072) | Playable on an iPhone (upstream) |
| The Legend of Zelda: Breath of the Wild | 01007EF00011E000 |
1.9.0 (v1114112) | Playable on an iPhone (upstream) |
| AI: THE SOMNIUM FILES | 010089B00D09C000 |
1.0.1 (v65536) | Playable on an iPhone (upstream) |
| STEINS;GATE RE:BOOT | 01008BC024FDE000 |
1.0.3 (v131072) | Profile present; not verified on a phone |
| Metroid Dread | 010093801237C000 |
2.1.0 (v327680) | Playable on an iPhone (upstream) |
| Super Mario Galaxy | 010099C022B96000 |
1.3.1 (v327680) | Playable on an iPhone (upstream) |
| Captain Toad: Treasure Tracker | 01009BF0072D4000 |
1.4.2 (v393216) | Profile present; not verified on a phone |
| Hades II | 0100A00019DE0000 |
无（v0） | Verified here — builds, installs and runs on an iPhone; 33-file archive |
| Cuphead | 0100A5C00D162000 |
1.3.7 (v655360) | Profile present; not verified on a phone |
| Fire Emblem Engage | 0100A6301214E000 |
2.0.0 (v327680) | Playable on an iPhone (upstream) |
| Absolum | 0100A83022A22000 |
1.1.1 (v393216) | Profile present; not verified on a phone |
| DRAGON QUEST VII Reimagined | 0100A9D01C446000 |
1.2.0 (v131072) | Profile present; not verified on a phone |
| Monster Hunter Rise | 0100B04011742000 |
16.0.2 (v2228224) | Profile present; not verified on a phone |
| Catherine: Full Body | 0100BF00112C0000 |
1.0.1a (v131072) | Profile present; not verified on a phone |
| Balatro | 0100CD801CE5E000 |
1.1.3 (v851968) | Playable on an iPhone (upstream) |
| Rhythm Heaven Groove | 0100D9F01D474000 |
无（v0） | Profile present; not verified on a phone |
| Luigi's Mansion 3 | 0100DCA0064A6000 |
1.4.0 (v327680) | Playable on an iPhone (upstream) |
| Patrick's Parabox | 0100E44016C22000 |
1.0.1 (v65536) | Profile present; not verified on a phone |
| Paper Mario: The Thousand-Year Door | 0100ECD018EBE000 |
1.0.1 (v65536) | Profile present; not verified on a phone |
| The Legend of Zelda: Tears of the Kingdom | 0100F2C0115B6000 |
1.4.3 (v720896) | Verified here — builds, installs and runs on an iPhone; 304,243 files into 127 archive shards, byte-verified |
| Pokémon Legends: Z-A | 0100F43008C44000 |
2.0.2 (v393216) | Profile present; not verified on a phone |
| Brain Memory Training Academy | 0100F5D01DA3A000 |
无（v0） | Profile present; not verified on a phone |
| Super Mario Galaxy 2 | 0100FD8022DAA000 |
1.4.0 (v393216) | Profile present; not verified on a phone |
Verified on
- Tears of the Kingdom (0100F2C0115B6000, v1.0.0 + update 1.4.3): 304,243 files packed into 127
files; all 304,243 byte-compared against the source (
verify: OK); the game runs from the archive on macOS (1,905 frames at 30 fps). - Hades II (0100A00019DE0000, base + update 1.0.137848): 5,258 files packed into 33 files,
byte-compare OK, and the game runs from the archive on macOS (2,100 frames, 1,772 archive reads).
The update needs no special handling:
nx_extractalready layers the update NCA over the base withOpenFileSystemWithPatch, so the extracted RomFS — and therefore the archive — is the merge. Playable on an iPhone (12 GB device, AltStore Classic 2.3) once the memory entitlement is in effect — see below. - The C reader walks all 304,243 Tears of the Kingdom files and 2,667 directories in 7.6 s.
The jetsam budget is the limit on big titles, and it can be raised. Without
com.apple.developer.kernel.increased-memory-limit an iPhone gives this app ~3,375 MB (measured on
a 12 GB device: Tears of the Kingdom was killed entering the world map at 3,342 MB resident with
33 MB of headroom; lowering the render scale to 0.5 did not change it, so the limit is the guest
heap, not the GPU). The app requests the entitlement and build_ipa.sh embeds it in a placeholder
ad-hoc signature — an unsigned binary has no signature for a sideloader to read entitlements from,
so without that step the request would be lost. AltStore Classic 2.2+, Impactor and Xcode
with a Personal Team keep it; SideStore with a free Apple ID needs a one-time App ID fix;
Sideloadly does not. See dm/ios/ENTITLEMENTS.md for the steps and how
to tell from Documents/log.txt (resident + headroom: ~3,375 MB = not in effect, 6–8 GB = it is).
Limitations
- Read-only. The archive is never written; saves and temp data go to their own mounts as before.
- Case-sensitive lookup. Names are stored as the source tree had them, so the host's case-insensitive alias machinery (for APFS) is bypassed for archive entries.
- Symlinks are followed at pack time. No supported game's RomFS has any.
- The index is held in memory. 28 MB for Tears of the Kingdom (17.9 MB of it names). Shards are not.
- No dedup or compression. Shards are the source bytes verbatim, so
verifyis a plain comparison and a repack is deterministic.
Credits
All of the emulation work is other people's. This repository adds the archive subsystem on top:
- nxnative (MIT) — the native-execution toolchain this repository is built from: the NSO rewriter, the Horizon host layer, NVN-on-Metal, the per-game profiles and the iOS shell.
- d2r-mobile (MIT) — the original native-execution approach that nxnative grew out of.
- Ryujinx (MIT) — the shader translator that turns Maxwell shaders into SPIR-V.
- Atmosphère — the reference for Horizon's synchronization semantics.
- LibHac — reads NSPs and layers updates in
nx_extract. - SPIRV-Cross — SPIR-V to Metal Shading Language.
- yuzu, deko3d, libvpx, stb_vorbis, libdeflate — see upstream's acknowledgement list for what each contributes.
dm/third_party ships other projects with their licenses (list).
Legal
What this project is. A build tool for games you already own. It reads dumps you made of your own cartridges and purchases, on your own machine, and produces a package for your own device. Nothing in this repository, in the app, or in any release contains or distributes Nintendo's code, art, text, data, shaders, firmware, keys or any other copyrighted material.
What it cannot do. The pipeline has no source of games or keys: it requires the user's own
prod.keys and their own NSP/XCI dumps, and it talks to no server. It does not bypass, strip or
redistribute any protection — LibHac opens the user's own dumps with the user's own keys, the same
operation a console performs on a cartridge.
Trademarks. Not affiliated with, sponsored by or endorsed by Nintendo. "Nintendo Switch" and game titles are trademarks of Nintendo Co., Ltd.; all other trademarks belong to their respective owners.
Your responsibility. Laws on making a personal backup copy differ by country; some places do not allow it at all. You are responsible for knowing and following the law where you live, and for never distributing game files, keys or the packages built from them — the project's outputs are for personal use on your own hardware only. If you enjoy a game, buy it.
Takedowns. If you believe anything in this repository infringes your rights, open an issue or contact the maintainer directly; valid claims will be actioned promptly, up to removing content or the repository.
No warranty. The software is provided "as is" under the licenses in LICENSE (this fork adds to upstream's; see the credits) — without warranty of any kind, express or implied. Use it at your own risk.
